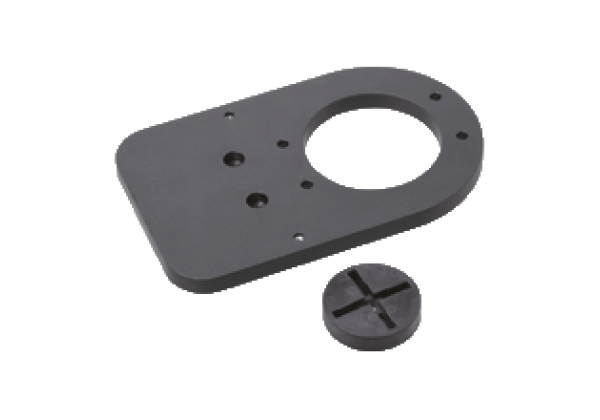

Adapter plate MH-F31K-02
Brand: Pepperl+Fuchs
Code: MH-F31K-02
Datasheet excerpt: Technical data of MH-F31K-02
| Product Description |
|---|
| Adapter plate |
| Standard conformity | ||
|---|---|---|
| Surface resistance | IEC 60093 | |
| Mechanical specifications | ||
| Mounting hole pattern | 30 x 80 mm and 30 x 130 mm Inserted M5 mounting nuts can be removed | |
| Material | PA , black electrically conductive | |
| Surface resistance | < 109 Ω | |
| Spacer disk | PA (1 unit, 10 mm strong) | |
| Mounting screw | stainless steel socket cap head screws DIN 912 For F31: 2 x M5 x 20 For F31K: 2 x M5 x 25 For MH-F31K: 2 x M5 x 16 For BT65A with spacer: 1 x M6 x 35 for BT65-F31...: 2 x M5 x 25 | |
| Mounting nut | 4 x M5 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273792 |
| ECLASS 10.0.1 | 27273792 |
| ECLASS 9.0 | 27273792 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
