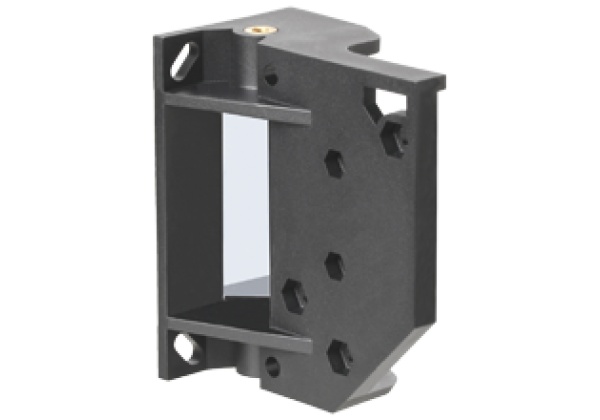

Mounting aid MH-R20x/F77-03
Brand: Pepperl+Fuchs
Code: MH-R20x/F77-03
Mounting aid
Datasheet excerpt: Technical data of MH-R20x/F77-03
| Product Description |
|---|
| Mounting aid |
| General specifications | ||
|---|---|---|
| Beam deviation angle | 90 ° | |
| Mechanical specifications | ||
| Height | 40 mm | |
| Depth | 76 mm | |
| Width | 68 mm | |
| Material | PA6-GB30 Deviation mirror: polystyrene mirrored | |
| Mass | approx. 40 g | |
| Note | Fixing screws included with delivery | |
| Suitable series | ||
| Series | R200 , R201 , F77 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
