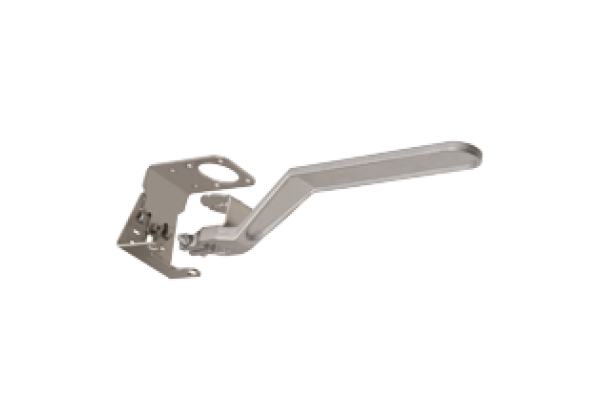

Mounting set MHV-BT-F07-G17
Brand: Pepperl+Fuchs
Code: MHV-BT-F07-G17
Datasheet excerpt: Technical data of MHV-BT-F07-G17
| Product Description |
|---|
| Adjustable assembly set for sizes F07 manual operated valves according to EN ISO5211, square shaft G= 17 mm, minimum height 19 mm |
| General specifications | ||
|---|---|---|
| Suitable sensors and | Double sensors, -F25 series with actuator BT32... Double sensors, -F25K series with actuator BT32... Double sensors, -F31 series with actuator BT65... Double sensors, -F31K series with actuator BT65... Double sensors, -F31K2 series with actuator BT65... | |
| Standard conformity | ||
| Standards | DIN EN ISO 5211 / DIN 3337 | |
| Mechanical specifications | ||
| Material | stainless steel 1.4301 / AISI 304 for plates and sheet metal bending parts Stainless steel 1.4305 / AISI 303 for shaft Stainless steel 1.4408 /AISI 316 for handle | |
| Mass | 663 g | |
| General information | ||
| Note | For the mounting set, an adapter plate and depending on this, and further accessories must be ordered. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
