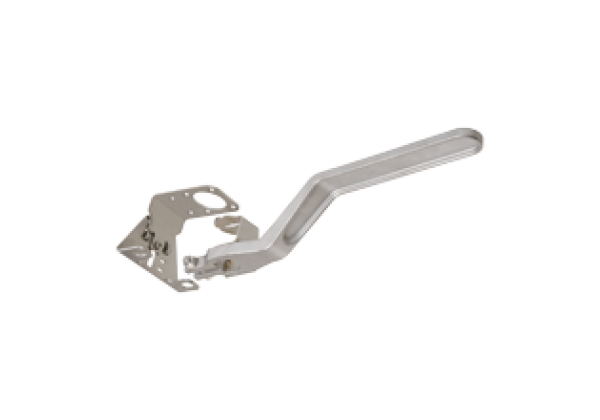

Mounting set MHV-BT-F10-G22
Brand: Pepperl+Fuchs
Code: MHV-BT-F10-G22
Datasheet excerpt: Technical data of MHV-BT-F10-G22
| Product Description |
|---|
| Adjustable assembly set for sizes F10 manual operated valves according to EN ISO5211, ISO5211, square shaft G= 22 mm, minimum height 24 mm |
| General specifications | ||
|---|---|---|
| Suitable sensors and | Double sensors, -F25 series with actuator BT32... Double sensors, -F25K series with actuator BT32... Double sensors, -F31 series with actuator BT65... Double sensors, -F31K series with actuator BT65... Double sensors, -F31K2 series with actuator BT65... | |
| Standard conformity | ||
| Standards | DIN EN ISO 5211 / DIN 3337 | |
| Mechanical specifications | ||
| Material | stainless steel 1.4301 / AISI 304 for plates and sheet metal bending parts Stainless steel 1.4305 / AISI 303 for shaft Stainless steel 1.4408 /AISI 316 for handle | |
| Mass | 1110 g | |
| General information | ||
| Note | For the mounting set, an adapter plate and depending on this, and further accessories must be ordered. | |
