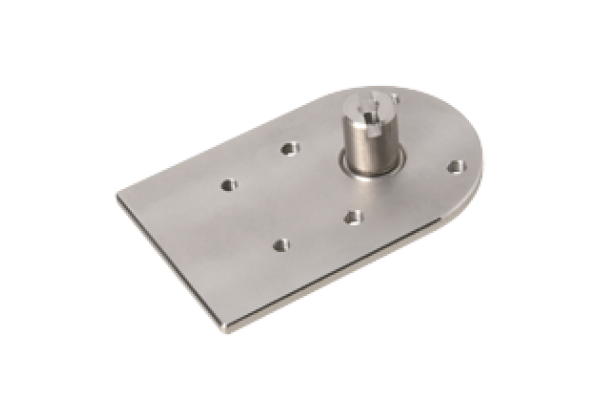

Adapter plate MHV-BT-F25/F31
Brand: Pepperl+Fuchs
Code: MHV-BT-F25/F31
Datasheet excerpt: Technical data of MHV-BT-F25/F31
| Product Description |
|---|
| Adapter plate for double sensors -F25/-F31 series |
| General specifications | ||
|---|---|---|
| Suitable sensors and | Double sensors, -F25 series with actuator BT32... Double sensors, -F25K series with actuator BT32... Double sensors, -F31 series with actuator BT65... | |
| Standard conformity | ||
| Standards | VDI / VDE 3845 DIN EN ISO 5211 | |
| Mechanical specifications | ||
| Shaft diameter | 16 mm | |
| Shaft height | 20 mm | |
| Mounting hole pattern | sensor: 30 x 80 mm, M5 screw mounting bracket: 4 x 50 mm, M6 screw | |
| Material | stainless steel 1.4301 / AISI 304 for plates and sheet metal bending parts Stainless steel 1.4305 / AISI 303 for shaft | |
| Mounting materials | stainless steel socket cap head screws 4 x M6 x 8 mm | |
| Mass | 300 g | |
