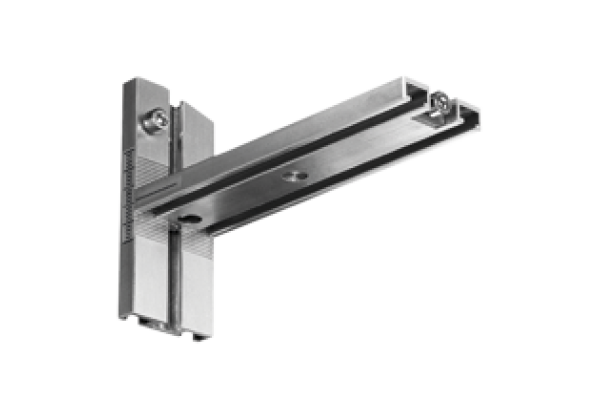

Mounting aid MHW 06
Brand: Pepperl+Fuchs
Code: MHW 06
Modular mounting bracket
Datasheet excerpt: Technical data of MHW 06
| Product Description |
|---|
| Modular mounting bracket |
| Mechanical specifications | ||
|---|---|---|
| Material | Extruded aluminum profile | |
| Dimensions | Profile rail 1 for the installation of the mounting bracket: 155 mm Profile rail 2 for positioning the mounting bracket for the supporting profile: [*PD-Z02209A*] | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
