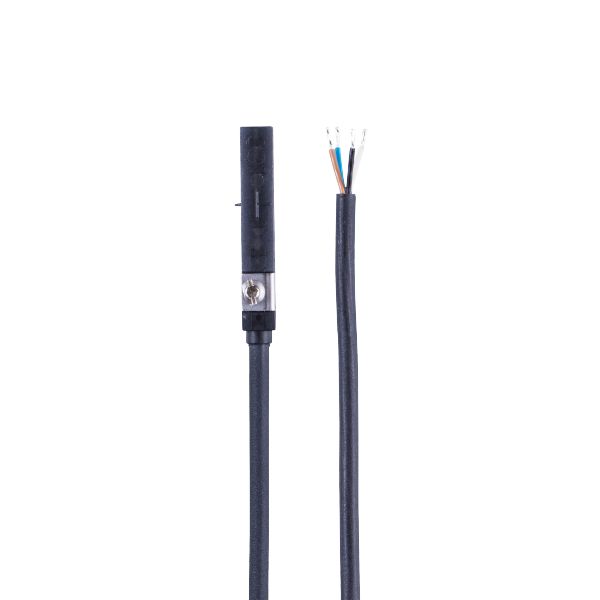

MK5904 cylinder sensor with IO-Link MKT4028BFRKG/H/IO/ZH

Code: MK5904

Only 1 sensor for 2 end positions for short-stroke cylinders
End position setting aid with second LED
Inline quality monitoring with 50 mm detection range
Monitoring of critical pneumatic cylinders via switching cycles counter
Fast fault localisation thanks to extensive diagnostic functions

Product characteristics

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (parameterisable)
Communication interface	IO-Link

Application

Operating principle	Hall sensor; (3D function)

Electrical data

Operating voltage [V]	10...30 DC; ("supply class 2" to cULus)
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Output signal	switching signal; IO-Link
Electrical design	PNP/NPN; (parameterisable)
Number of digital outputs	2
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	200
Type of short-circuit protection	pulsed
Short-circuit proof	yes
Overload protection	yes

Detection zone

Measuring range [mm]	50; (depending on the application)
Min. field strength [mT]	1

Accuracy / deviations

Hysteresis [mm]	1.25; (parameterisable)
Repeatability [mm]	< 0.2
Linearity error IO-Link [%]	< 5
Resolution [mm]	0,01; (depending on the application)

Software / programming

Parameter setting options	switch points; counter function; diagnostic function

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1.3

SDCI standard

IEC 61131-9 CDV

Profiles

Function class	Designation
0x0010	Measuring and Switching Sensor, 1 channel
0x4000	Identification and Diagnosis
0x8013	Object Detection
0x8101	Locator
0x8102	ProductURI

SIO mode

yes

Required master port type

Supported DeviceIDs

Type of operation	DeviceID
Default	1613

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2	- CD / 8 kV AD
EN 61000-4-3	10 V/m
EN 61000-4-4	2 kV
EN 61000-4-6	10 V
EN 55011	class B

Impact resistance

EN 60068-2-75 Ehc

1 J

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes

Shock resistance

EN 60068-2-27 Ea

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

MTTF [years]

1088

UL approval

Ta	-25...75 °C
Enclosure type	Type 1
power supply	Class 2
UL Approval no.	C020
File number UL	E174191

Mechanical data

Weight [g]	30.8
Type of mounting	fixing element with combined head slot / hexagon socket AF 1.5
Cylinder type	T-slot cylinders
Materials	housing: PA; fastening clamp: stainless steel

Displays / operating elements

Display

switching status	2 x LED, yellow SSC1.1 SSC1.2
operation	1x LED, green

Accessories

Items supplied

Cable clip 1x

rubber placeholder 1x

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR, Ø 2.9 mm; 4 x 0.08 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MK5904-00 — 27.04.2023 —
