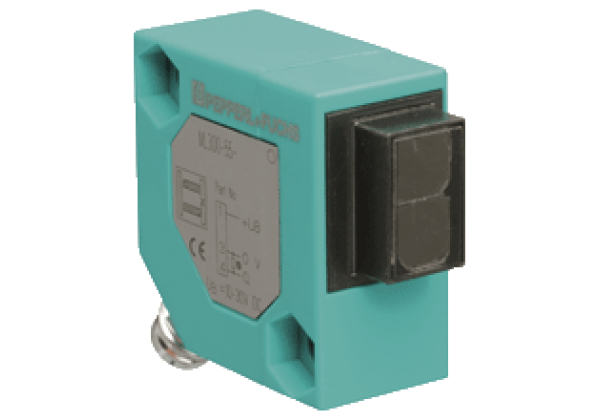

Retroreflective sensor ML300-55-2m-RT/59/98/102
Brand: Pepperl+Fuchs
Code: ML300-55-2m-RT/59/98/102
Retroreflective sensor for standard applications, miniature design, polarization filter, 3.5 m detection range, red light, dark on, NPN output, M8 plug, Miniature design, Easy to use, Visible red light, 45° connector
Datasheet excerpt: Technical data of ML300-55-2m-RT/59/98/102
| Product Description |
|---|
| Retroreflective sensor for standard applications, miniature design, polarization filter, 3.5 m detection range, red light, dark on, NPN output, M8 plug |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 2 m | |
| Reflector distance | 0.02... 2 m | |
| Threshold detection range | 3.5 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 200 mm at 2 m | |
| Opening angle | approx. 6 ° | |
| Ambient light limit | ||
| Continuous light | 10000 Lux | |
| Modulated light | 5000 Lux | |
| Indicators/operating means | ||
| Function indicator | LED yellow: lights up when output is active LED green: Sufficient stability control | |
| Control elements | sensitivity adjustment | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | max. 20 mA | |
| Output | ||
| Switching type | dark-on | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 0.1 A | |
| Voltage drop | ≤ 2 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Shock and impact resistance | EN 60947-5-7 30 g, 11 ms, all axes | |
| Vibration resistance | EN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 55 °C (-13... 131 °F) | |
| Mechanical specifications | ||
| Housing width | 30 mm | |
| Housing height | 30 mm | |
| Housing depth | 15 mm | |
| Degree of protection | IP65 | |
| Connection | M8 x 1 connector, 3-pin | |
| Material | ||
| Housing | ABS | |
| Optical face | plastic | |
| Connector | metal | |
| Mass | 18 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
