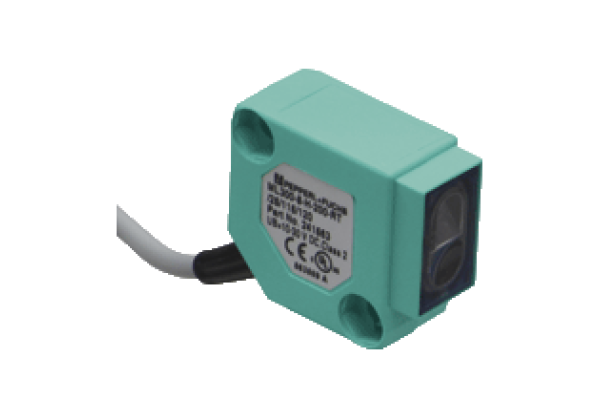

Background suppression sensor ML300-8-H-200-RT/25/115/120
Brand: Pepperl+Fuchs
Code: ML300-8-H-200-RT/25/115/120
Background suppression sensor, Miniature design, Easy to use, Visible red light, 45° cable connector
Datasheet excerpt: Technical data of ML300-8-H-200-RT/25/115/120
| Product Description |
|---|
| Background suppression sensor |
| General specifications | ||
|---|---|---|
| Detection range | 0... 200 mm , adjustable | |
| Detection range min. | 5... 25 mm | |
| Detection range max. | 0... 200 mm | |
| Adjustment range | 25... 200 mm | |
| Reference target | standard white, 100 mm x 100 mm | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Black-white difference (6 %/90 %) | 15 % at 200 mm | |
| Diameter of the light spot | approx. 12 mm at a distance of 200 mm | |
| Opening angle | approx. 3.5 ° | |
| Ambient light limit | ||
| Continuous light | 10000 Lux | |
| Modulated light | 5000 Lux | |
| Accessories provided | Mounting bracket OMH-ML300-01 | |
| Indicators/operating means | ||
| Function indicator | LED yellow: lights up when output is active LED green: lights up with a stable object recognition | |
| Control elements | Sensing range adjuster | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 20 % | |
| No-load supply current | max. 25 mA | |
| Output | ||
| Switching type | light on / dark on | |
| Signal output | 2 PNP outputs, complementary, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 0.1 A | |
| Voltage drop | ≤ 2 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 60947-5-2:2007 | |
| Standard conformity | ||
| Product standard | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Shock and impact resistance | EN 60947-5-7 30 g, 11 ms, all axes | |
| Vibration resistance | EN 60947-5-7, 10-55 Hz/1.5 mm amplitude, all axes | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 55 °C (-13... 131 °F) | |
| Mechanical specifications | ||
| Housing width | 30 mm | |
| Housing height | 30 mm | |
| Housing depth | 15 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PBT | |
| Optical face | glass pane | |
| Cable | PVC | |
| Mass | 75 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270904 |
| ECLASS 10.0.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 5.1 | 27270904 |
| ETIM 9.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 5.0 | EC002719 |
| UNSPSC 12.1 | 39121528 |
