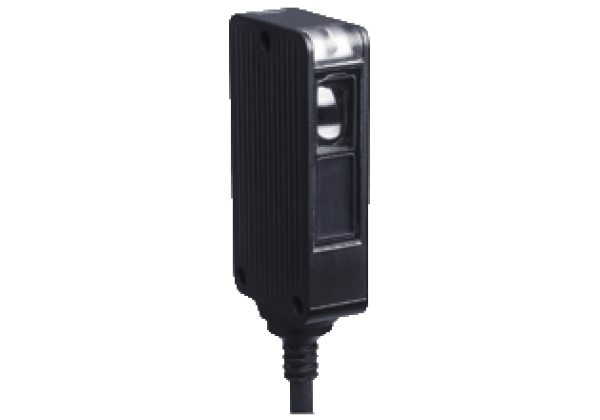

Retroreflective sensor MLV41-54-G/25/115/123/136
Brand: Pepperl+Fuchs
Code: MLV41-54-G/25/115/123/136
Robust retroreflective sensor for glass detection, compact housing design, 5.2 m detection range, red light, light on, 2 push-pull outputs, fixed cable, Rugged series in corrosion-resistant metal housing, Reliable recognition of reflective objects and clear glass, Two machines in one: clear object detection or reflection operating mode with long range, TEACH-IN switch for setting the contrast detection levels, Automatic adjustment in case of soiling in contrast detection mode
Datasheet excerpt: Technical data of MLV41-54-G/25/115/123/136
| Product Description |
|---|
| Robust retroreflective sensor for glass detection, compact housing design, 5.2 m detection range, red light, light on, 2 push-pull outputs, fixed cable |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 4 m in TEACH mode 0... 5.2 m at switch position "N" | |
| Reflector distance | 0... 4 m in TEACH mode 0... 5.2 m at switch position "N" | |
| Threshold detection range | 6.5 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Polarization filter | yes | |
| Angle deviation | max. ± 1° | |
| Diameter of the light spot | approx. 100 mm at detection range 4 m | |
| Opening angle | 1.5 ° | |
| Ambient light limit | 40000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 900 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | 2 LEDs yellow for switching state, stability control, TEACH-IN and contrast detection mode | |
| Control elements | 5-step switch for setting the contrast detection levels. | |
| Contrast detection levels | 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials adjustable due to Teach-In switch | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | max. 35 mA | |
| Input | ||
| Function input | Ext. Teach-In input (ET) | |
| Output | ||
| Signal output | 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2.5 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II, rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 , functional insulation acc. to DIN EN 50178 | |
| UL approval | cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -40... 60 °C (-40... 140 °F) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 31 mm | |
| Housing height | 56.5 mm | |
| Housing depth | 13.6 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | Aluminum , Delta-Seal coated | |
| Optical face | glass pane | |
| Mass | 100 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
