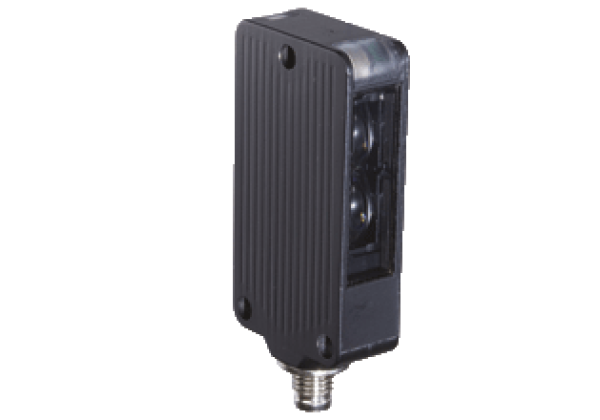

Retroreflective sensor MLV41-6-IO/98/103
Brand: Pepperl+Fuchs
Code: MLV41-6-IO/98/103
Robust retroreflective sensor, compact housing design, IO-Link interface, 9.5 m detection range, red light, dark on, PNP output, M8 plug, Rugged series in corrosion-resistant metal housing, IO-Link interface for service and process data, Extremely high switching frequency, Clear and functional display concept for the operating modes, Resistant against noise: reliable operation under all conditions
Datasheet excerpt: Technical data of MLV41-6-IO/98/103
| Product Description |
|---|
| Robust retroreflective sensor, compact housing design, IO-Link interface, 9.5 m detection range, red light, dark on, PNP output, M8 plug |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 9.5 m | |
| Reflector distance | Foil reflector 0.05... 3 m Retro-reflector 0.01... 9.5 m | |
| Threshold detection range | 12 m | |
| Reference target | OFR-22800/76 , H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 625 nm | |
| Polarization filter | no | |
| Angle deviation | max. ± 1.5 ° | |
| Diameter of the light spot | approx. 300 mm at detection range 8.5 m | |
| Opening angle | 1.5 ° | |
| Optical face | frontal | |
| Ambient light limit | 20000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 940 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) , IO link communication: green LED goes out briefly (1 Hz) | |
| Function indicator | LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve | |
| Control elements | none | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | max. 30 mA | |
| Interface | ||
| Interface type | IO-Link | |
| Protocol | IO-Link V1.0 | |
| Mode | COM2 (38.4 kBit/s) | |
| Output | ||
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2.5 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) 60... 70 °C (140... 158 °F) ; max. 20,000 hours = 2.5 years (continuous operation) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 31 mm | |
| Housing height | 56.5 mm | |
| Housing depth | 13.6 mm | |
| Degree of protection | IP67 | |
| Connection | M8 x 1 connector, 3-pin | |
| Material | ||
| Housing | Aluminum , Delta-Seal coated | |
| Optical face | glass pane | |
| Connector | metal | |
| Mass | 50 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
