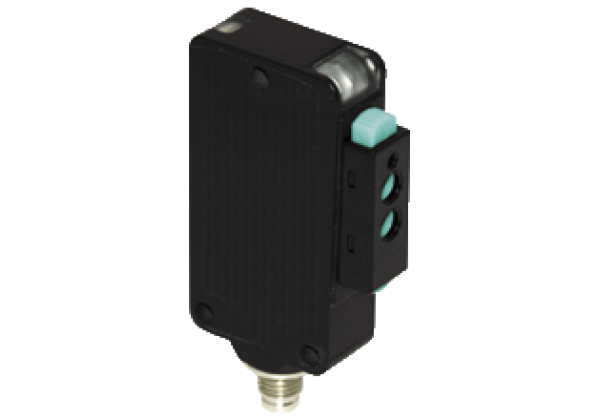

Fiber optic sensor MLV41-LL-RT/95/136
Brand: Pepperl+Fuchs
Code: MLV41-LL-RT/95/136
Robust fiber optic sensor for glass fiber optics, red light, push-pull output, M8 plug, Robust fiber optic sensor for reliable operation under all conditions, Adjustable continuous sensitivity, Easy fiber optic installation with quick-action clamping lock, Aluminum housing with high-quality Delta Seal coating
Datasheet excerpt: Technical data of MLV41-LL-RT/95/136
| Product Description |
|---|
| Robust fiber optic sensor for glass fiber optics, red light, push-pull output, M8 plug |
| General specifications | ||
|---|---|---|
| Sensor range | on black (6 %): up to 36 mm on Kodak white, reflection factor 90% up to 120 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable | |
| Adjustment range | 0... 120 mm on Kodak white, reflection factor 90% | |
| Reference target | 100 mm x 100 mm on Kodak white, reflection factor 90% | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Functional safety related parameters | ||
| MTTFd | 770 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | LED yellow, lights up with receiver lit ; flashes when falling short of the operating reserve | |
| Control elements | Sensitivity adjuster, light/dark switch | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | max. 40 mA | |
| Output | ||
| Switching type | light/dark on switchable The switching modes specified in the "Electrical Connection" section apply to L/D switches in the "D" position (dark switch) | |
| Signal output | 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2.5 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 31 mm | |
| Housing height | 56.5 mm | |
| Housing depth | 13.6 mm | |
| Fiber optic adapter | 04 | |
| Degree of protection | IP67 | |
| Connection | M8 x 1 connector, 4-pin | |
| Material | ||
| Housing | Aluminum , Delta-Seal coated | |
| Optical face | Fiber optic connection | |
| Connector | metal | |
| Mass | 50 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 10.0.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 5.1 | 27270905 |
| ETIM 9.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
