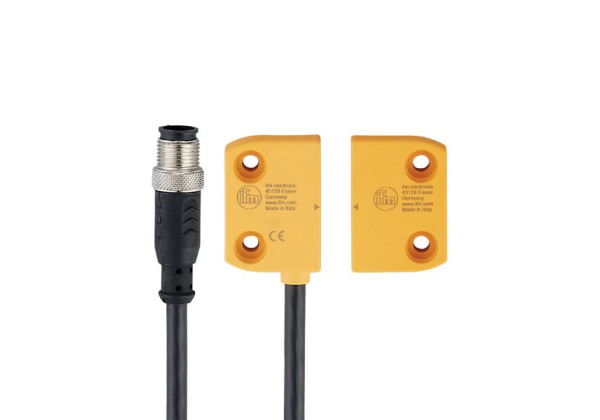

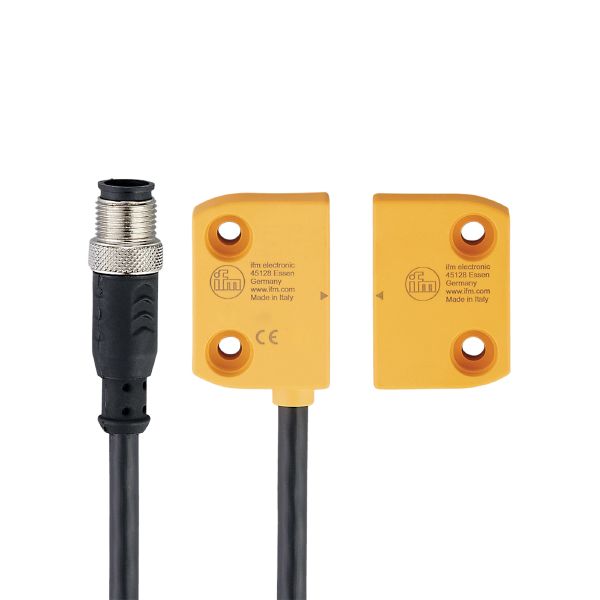

MN203S - MN14005-AKOG/0.1m/-H/US
Brand: IFM Electronic
Code: MN203S
- Actuation possible from different directions
- Conceal behind stainless steel for enhanced tamper prevention
- Meets the new interface description CB24I from ZVEI
- Meets highest safety levels to ISO 13849-1 and SILCL 3 to IEC 62061
Product characteristics
| Output function | 2 x normally open; (potential-free) |
|---|---|
| Sensing range [mm] | 5; (with defined actuator) |
| Housing | rectangular |
| Dimensions [mm] | 36 x 13 x 26 |
Application
| Design | coded target |
|---|---|
| Type of operation | permanent operation |
Electrical data
| Operating voltage [V] | 24 DC |
|---|---|
| Rated insulation voltage [V] | 60 |
| Protection class | III |
| Reverse polarity protection | no |
| Internal resistance (Ri) [Ω] | 10; (1 W) |
Outputs
| Output function | 2 x normally open; (potential-free) |
|---|---|
| Permanent current rating of switching output DC [mA] | 50 |
| Switching frequency DC [Hz] | 150 |
| Output data | Interface type A |
| Short-circuit proof | no |
| Max. capacitive load CL_max [nF] | 20 |
Detection zone
| Sensing range [mm] | 5; (with defined actuator) |
|---|---|
| Safe switching-off distance s(ar) [mm] | 15 |
Response times
| Response time to safety request [ms] | 10 |
|---|---|
| Max. fall time [ms] | 0.1 |
| Max. make time incl. bounce [ms] | 0.6 |
Operating conditions
| Applications | class C to EN 60654-1 weatherproof application | |
|---|---|---|
| Ambient temperature [°C] | -25...80 | |
| Note on ambient temperature |
| |
| Ambient temperature [°C] | 10...40 | |
| Note on ambient temperature |
| |
| Max. relative air humidity [%] | briefly: 5...95 %; permanent: 5...70 % | |
| Air pressure [kPa] | 80...106 | |
| Max. height above sea level [m] | 2000 | |
| Salt spray | no | |
| Protection | IP 67; IP 69K; (protected cable laying) |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| Shock resistance |
| ||
| Vibration resistance |
|
Safety classification
| Mission time TM [h] | ≤ 175200 | |
|---|---|---|
| Mission time TM (additional indication) |
| |
| B10D | 20.000.000; (without load; at max. load DC 12, 24 V, 50 mA: 400.000) |
Mechanical data
| Weight [g] | 130 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 36 x 13 x 26 |
| Materials | PA |
| Tightening torque [Nm] | 0.8...2 |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Cable: 0.1 m, PVC, Ø 5 mm |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — MN203S — 14.03.2022 —
