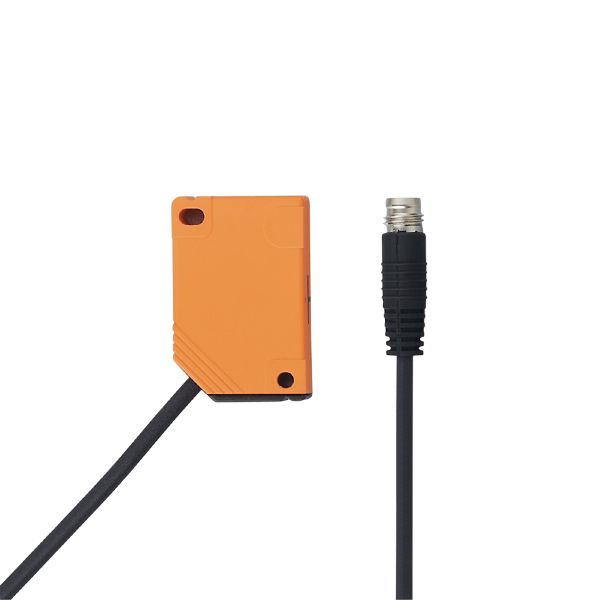

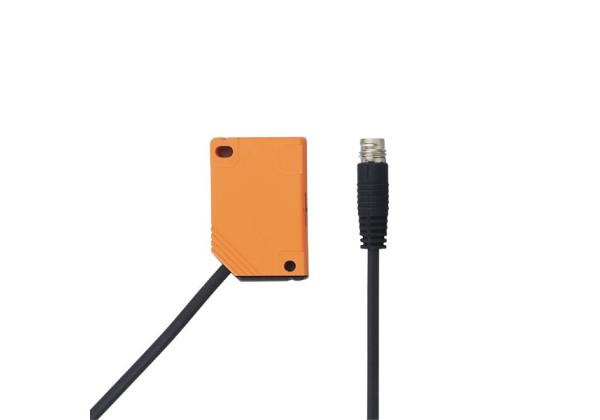

MN5200 - efector100-MN-3060-BPKG/0,15M/AS

Code: MN5200

Long sensing range of 60 mm
High switching frequency for fast processes
Flush or non-flush mountable in non-magnetisable metals
Wide operating temperature range

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	60; (referred to magnet M 4.0)
Housing	rectangular
Dimensions [mm]	40 x 12 x 26

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	5000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	60; (referred to magnet M 4.0)

Accuracy / deviations

Hysteresis [% of Sr]	1...10

Operating conditions

Ambient temperature [°C]	-40...75
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	10 V
EN 55011	class B
noise immunity according to DIN ISO 11452-2	100 V/m

MTTF [years]

1961

Mechanical data

Weight [g]	29
Housing	rectangular
Dimensions [mm]	40 x 12 x 26
Materials	housing: PBT

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.15 m, PUR; 3 x 0.34 mm²
Connection	Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
