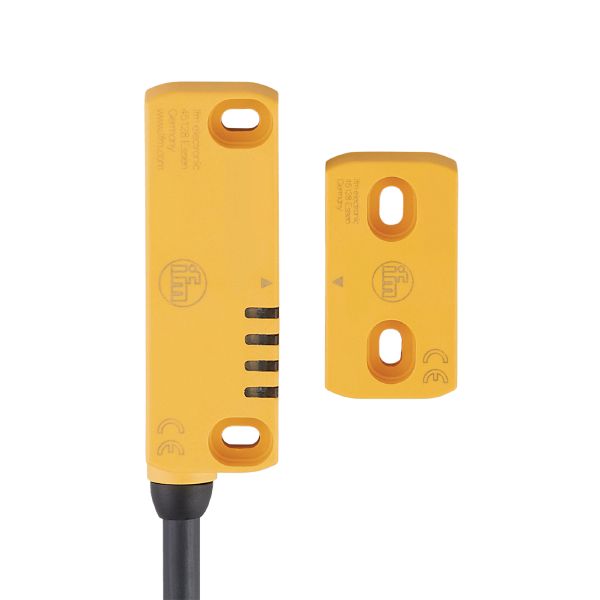

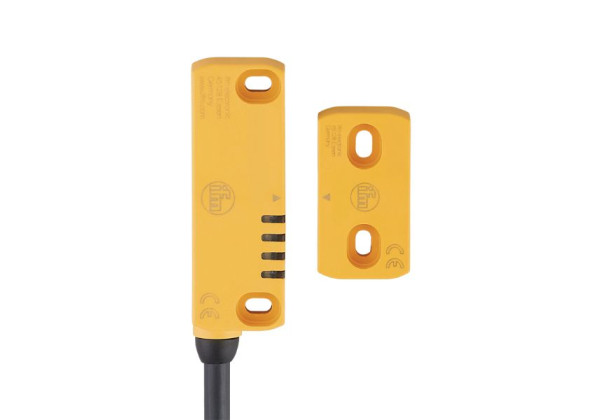

MN704S RFID-coded safety sensor MN38010-BPKG/UC/-H
Brand: IFM Electronic
Code: MN704S
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | 2 x OSSD, 1 x PNP |
| Sensing range [mm] | 12; (with defined actuator) |
| Housing | rectangular |
| Dimensions [mm] | 72 x 18 x 25 |
Application
| Design | uniquely fully coded target | |
|---|---|---|
| Type of operation | permanent operation | |
| Radio approval for | USA; Canada; Australia; EU/RED; China; Singapore | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 20.4...26.4 DC |
|---|---|
| Rated insulation voltage [V] | 32 |
| Operating current [mA] | 40...700 |
| No-load current [mA] | 30 |
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 1500 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x OSSD, 1 x PNP |
| Max. leakage current [mA] | 0.5 |
| Permanent current rating of switching output DC [mA] | 50 |
| Switching frequency DC [Hz] | 1 |
| Output data | interface type C class 2 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Max. capacitive load CL_max [nF] | 200 |
Detection zone
| Sensing range [mm] | 12; (with defined actuator) |
|---|---|
| Safe switching-off distance s(ar) [mm] | 16 |
Accuracy / deviations
| Hysteresis [%] | 20 |
|---|---|
| Repeatability analogue output [%] | ≤ 10; (% Sn) |
Response times
| Response time to safety request [ms] | 160 |
|---|---|
| Response time when approaching the enable zone [ms] | 600 |
| Risk time (response time for safety-related faults) [ms] | 10 |
Operating conditions
| Applications | class C to EN 60654-1 weatherproof application | |
|---|---|---|
| Ambient temperature [°C] | -25...70 | |
| Note on ambient temperature |
| |
| Ambient temperature [°C] | 10...40 | |
| Note on ambient temperature |
| |
| Max. relative air humidity [%] | briefly: 5...95 %; permanent: 5...70 % | |
| Air pressure [kPa] | 80...106 | |
| Max. height above sea level [m] | 2000 | |
| Ionising radiation | not permissible | |
| Salt spray | no | |
| Protection | IP 67; IP 69K; (protected cable laying) |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| Shock resistance |
| ||
| Vibration resistance |
|
Safety classification
| Complies with the requirements |
| ||
|---|---|---|---|
| Mission time TM [h] | ≤ 175200 | ||
| Mission time TM (additional indication) |
| ||
| PFH [1/h] | 1,5E-09 |
Mechanical data
| Weight [g] | 330 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 72 x 18 x 25 |
| Materials | PA |
| Tightening torque [Nm] | 0.8...2 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PVC; 8 x 0.34 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — MN704S — 01.08.2023 —
