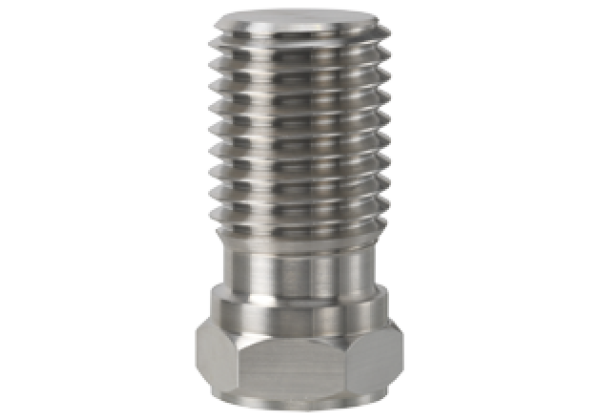

Mounting adapter MONAD-M08-1,25-M30-3,5/368
Brand: Pepperl+Fuchs
Code: MONAD-M08-1,25-M30-3,5/368
Mounting adapter for VIM3*/VIM6*/VIM8* vibration sensors, internal thread M8 x 1.25 x 10, external thread M30 x 3.5, screw-in depth 45
Datasheet excerpt: Technical data of MONAD-M08-1,25-M30-3,5/368
| Product Description |
|---|
| Mounting adapter for VIM3*/VIM6*/VIM8* vibration sensors, internal thread M8 x 1.25 x 10, external thread M30 x 3.5, screw-in depth 45 |
| General specifications | ||
|---|---|---|
| Suitable components | VIM3* vibration sensors VIM6* vibration sensors VIM8* vibration sensors | |
| Mechanical specifications | ||
| External thread | for machine mounting | |
| Thread type | metric | |
| Thread size | M30 x 3.5 | |
| Screw-in depth | 45 mm | |
| Internal thread | for sensor mounting | |
| Thread type | metric | |
| Thread size | M8 x 1.25 | |
| Thread length | 10 mm | |
| Length | 62 mm | |
| Diameter | 34.64 mm | |
| Material | Stainless steel 1.4404 / AISI 316L | |
| Mass | 303 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273792 |
| ECLASS 10.0.1 | 27273792 |
| ECLASS 9.0 | 27273792 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
