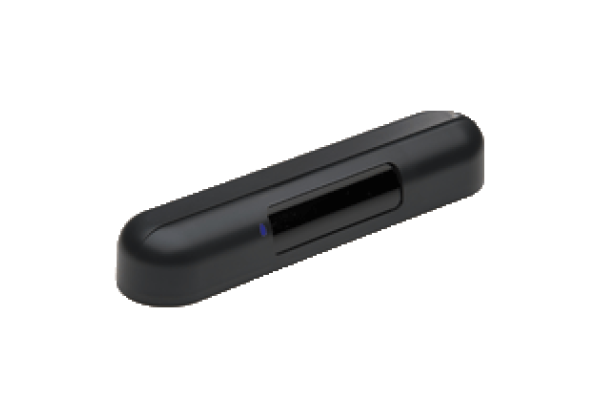

Combined sensor MotionScan
Brand: Pepperl+Fuchs
Code: MotionScan
Combined sensor for opening and securing automatic sliding doors, Radar opening impulse, Closing edge safety mechanism with diffuse sensor, Safety mechanism in accordance with EN 16005, Extra-large, adjustable protection field in front of the door, Function: Open and secure, Sensor principle: Area scanner
Datasheet excerpt: Technical data of MotionScan
| Product Description |
|---|
| Combination sensor for opening and protection |
| General specifications | ||
|---|---|---|
| Detection field | AIR, adjustable , total field: 2400 mm x 1000 mm (WxD) for a mounting height of 2200 mm | |
| Detection field | Radar sensor 2500 mm x 4000 mm (d x w) at installation height of 2200 mm and 45° angle | |
| Detection range max. | 0... 3200 mm | |
| Light source | 3 Series | |
| Light type | modulated infrared light | |
| Setting angle | -8... 4 ° | |
| Operating frequency | 24.15... 24.25 GHz K-Band , Radar sensor | |
| Transmitter radiated power (EIRP) | < 20 dBm | |
| Functional safety related parameters | ||
| Performance level (PL) | PL d | |
| Category | Cat. 2 | |
| MTTFd | 339.83 a | |
| Diagnostic Coverage (DC) | 81.52 % | |
| Indicators/operating means | ||
| Function indicator | LED green/blue/red/orange | |
| Control elements | DIP switch | |
| Control elements | sensitivity adjustment | |
| Parameterization indicator | LED flashes when in adjustment mode Fast orange | |
| Electrical specifications | ||
| Operating voltage | 12... 24 V DC / 12... 24 V AC +/- 10%, 50 - 60 Hz | |
| No-load supply current | ≤ 80 mA at 24 V DC ≤ 150 mA at 12 V: | |
| Power consumption | 2.5 VA | |
| Input | ||
| Activation current | at 24 V DC 6 mA | |
| Test input | active with +UB | |
| Output 1 | ||
| Output type | Infrared, optocoupler | |
| Switching voltage | 48 V DC | |
| Switching current | 300 mA resistive load | |
| De-energized delay | 0.5 s | |
| Switching type | light/dark on selectable programmable | |
| Response time | 100 ms up to 200 ms | |
| Output 2 | ||
| Output type | Radar, relay | |
| Switching voltage | 48 V DC | |
| Switching current | 100 mA resistive load | |
| De-energized delay | 1.5 s | |
| Switching type | NO/NC programmable | |
| Response time | 100 ms up to 200 ms | |
| Conformity | ||
| Functional safety | ISO 13849-1 | |
| Product standard | EN 12978 | |
| Approvals and certificates | ||
| CE conformity | 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. | |
| FCC approval | No - Use in North America is not permitted. | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -20... 60 °C (-4... 140 °F) | |
| Relative humidity | max. 80 % | |
| Mechanical specifications | ||
| Mounting height | max. 3200 mm | |
| Degree of protection | IP54 (when mounted) | |
| Connection | plug 8-pin , Connecting cable included with delivery | |
| Material | ||
| Housing | ABS | |
| Mass | approx. 260 g | |
| Dimensions | (W x H x D) 265 mm 60 mm 43 mm | |
| Note | Please refer to the package insert for information on how to mount and install the sensor correctly. | |
| General information | ||
| Scope of delivery | sensor , cable , 2 screws , Mounting aid , Instruction leaflet | |
| Suitable series | ||
| Series | MotionScan | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274501 |
| ECLASS 12.0 | 27280890 |
| ECLASS 11.0 | 27280890 |
| ECLASS 10.0.1 | 27280890 |
| ECLASS 9.0 | 27280890 |
| ECLASS 8.0 | 27280890 |
| ECLASS 5.1 | 27270990 |
| ETIM 9.0 | EC004807 |
| ETIM 8.0 | EC000138 |
| ETIM 7.0 | EC000138 |
| ETIM 6.0 | EC000138 |
| ETIM 5.0 | EC000138 |
| UNSPSC 12.1 | 39121528 |
