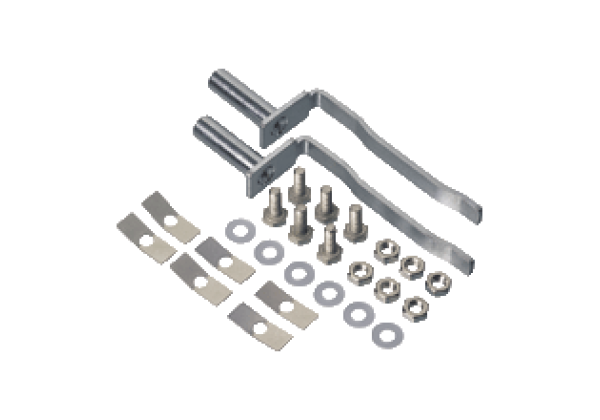

Mounting aid DGE Mounting Set AL2109 back board
Brand: Pepperl+Fuchs
Code: Mounting Set AL2109 back board
Mounting set for backboard mounting of the elevator light curtains AL2109, Variety of possible uses in the areas of doors and elevators, Simple and fast mounting
Datasheet excerpt: Technical data of Mounting Set AL2109 back board
| Product Description |
|---|
| Mounting aid |
| Mechanical specifications | ||
|---|---|---|
| Mass | approx. 30 g | |
| Suitable series | ||
| Series TTA | AL21 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
