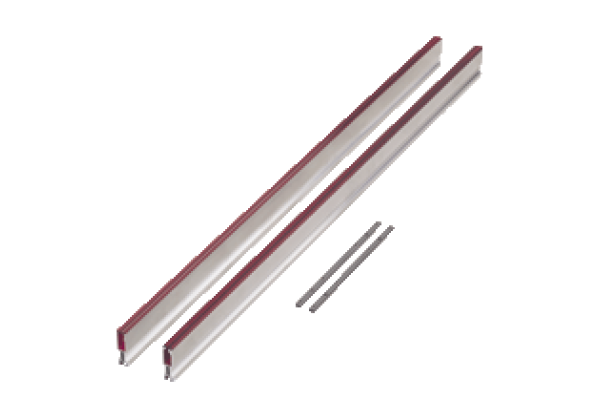

Mounting aid DGE Mounting Set AL2109 extension
Brand: Pepperl+Fuchs
Code: Mounting Set AL2109 extension
Mounting set for mechanical extension of the elevator light curtains AL2109, Variety of possible uses in the areas of doors and elevators, Simple and fast mounting
Datasheet excerpt: Technical data of Mounting Set AL2109 extension
| Product Description |
|---|
| Mounting aid |
| Mechanical specifications | ||
|---|---|---|
| Housing length L | 600 mm | |
| Material | Aluminum housing | |
| Mass | approx. 400 g | |
| Mounting | Mounting accessories included | |
| Suitable series | ||
| Series TTA | AL21 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
