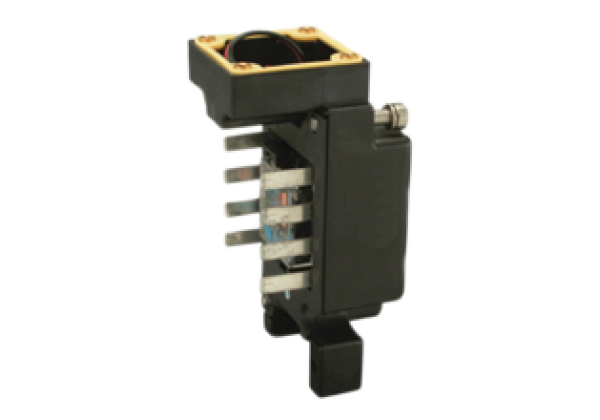

Photoelectric base modul, Accessories MPS32HD
Brand: Pepperl+Fuchs
Code: MPS32HD
Photoelectric Sensors; MP Series Modular, Plug-In base, Harsh duty, Modular design, Exchangeable rotatable head, Limit switch and mini style plug-in bases
Datasheet excerpt: Technical data of MPS32HD
| Product Description |
|---|
| Photoelectric Sensors; MP Series Modular |
| General specifications | ||
|---|---|---|
| Marking | CE | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Operating current | 250 mA max | |
| Output | ||
| Voltage drop | ≤ 1.0 V DC | |
| Current consumption | ≤ 25 mA | |
| Response time | ≤ 10 ms | |
| Output 1 | ||
| Output type | DC | |
| Output 2 | ||
| Output type | 1 PNP, Reverse polarity protected | |
| Standard conformity | ||
| Standards | EN 60947-5-2 | |
| Approvals and certificates | ||
| Approvals | CE, cULus | |
| Ambient conditions | ||
| Ambient temperature | -30... 70 °C (-22... 158 °F) | |
| Storage temperature | -55... 85 °C (-67... 185 °F) | |
| Relative humidity | 95% RH (non-condensing) | |
| Shock resistance | 50G | |
| Vibration resistance | 10G, 10... 500 Hz | |
| Mechanical specifications | ||
| Housing width | 39.6 mm | |
| Housing height | 85.9 mm | |
| Housing depth | 52.3 mm | |
| Degree of protection | IP69K When all components are properly assembled | |
| Connection | Dependent on receptacle selected | |
| Material | ||
| Housing | Glass-filled Polysulfone | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270992 |
| ECLASS 10.0.1 | 27270992 |
| ECLASS 9.0 | 27270992 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
