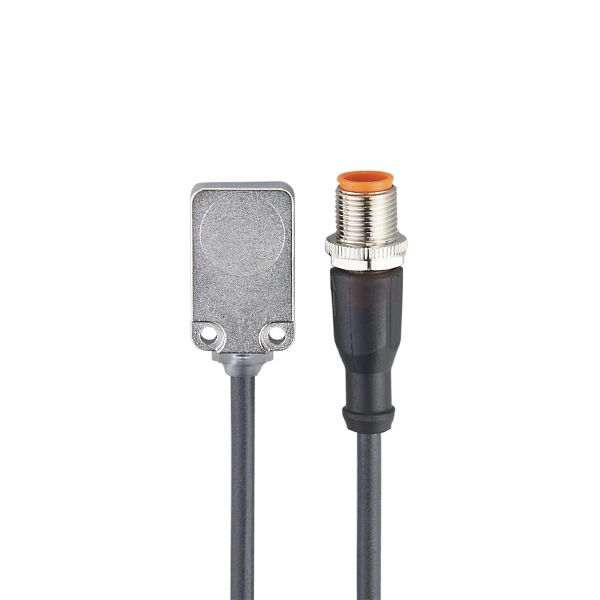

MQ2005 Magnetic sensor MQ23005BFRKG/B/AM/IO/0,3M/ZH/US

Code: MQ2005

Reliable wear notification when sensing range decreases
Indication of the degree of soiling for preventive maintenance
Integrated operating hours and switching cycles counter to monitor the lifetime of tools
Quick and simple switch point setting

Product characteristics

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (parameterisable)
Sensing range [mm]	5
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	20 x 8 x 32

Application

Media	ferrous only

Electrical data

Operating voltage [V]	10...30 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3

Outputs

Electrical design	PNP/NPN; (parameterisable)
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	100
Short-time current rating of switching output [mA]	100
Switching frequency DC [Hz]	200
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	5
Real sensing range Sr [mm]	5 ± 10 %
Operating distance [mm]	0...4.05

Accuracy / deviations

Correction factor	steel: 1
Hysteresis [% of Sr]	< 10
Switch point drift [% of Sr]	-10...20
Repeatability [% of Sr]	10

Software / programming

Parameter setting options	hysteresis / window; switch-off delay; switch-on operations; Auto-teach

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel

SIO mode

yes

Required master port type

Min. process cycle time [ms]

9.6

IO-Link process data (cyclical)

function	bit length
process value	16
device status	4
binary switching information	4

IO-Link functions (acyclical)

application specific tag; operating hours counter; switching cycles counter

Supported DeviceIDs

Type of operation	DeviceID
Default	830

Note

For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-30...85
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Continuous shock resistance

EN 60068-2-27

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes

MTTF [years]

1976

UL approval

Ta	-25...60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	C010
File number UL	E174191

Mechanical data

Weight [g]	44.9
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	20 x 8 x 32
Materials	diecast zinc; LED window: TPU; potting: PUR

Displays / operating elements

Display

Display operation	1 x LED, green
switching status	1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, Ø 4.9 mm; flame-retardant (IEC 60332-2, UL: FT2)
Connection	Connector: 1 x M12; coding: A; Locking: knurled nut, rotatable
