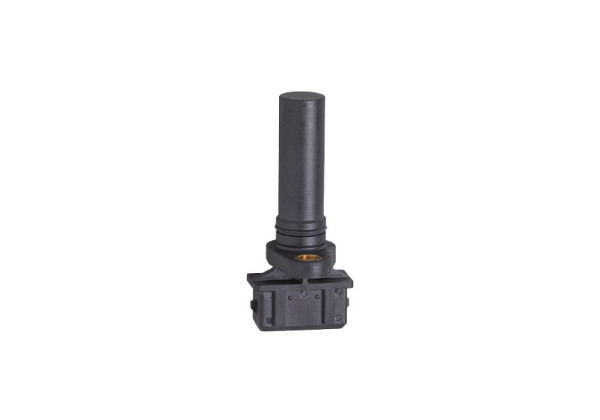

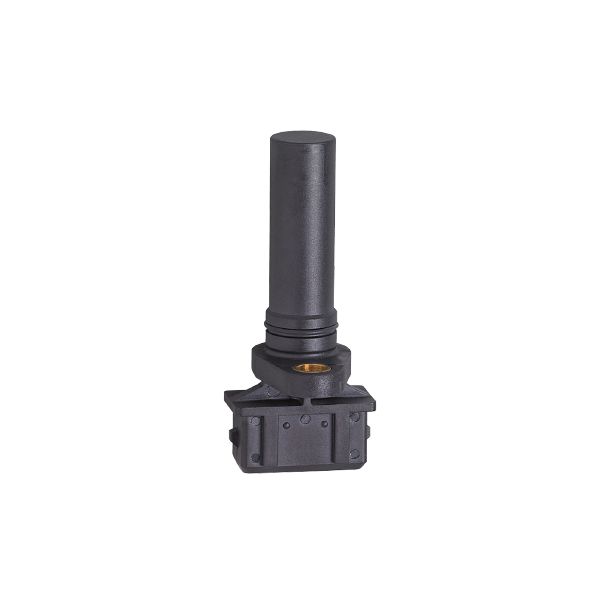

MX5000 - efector100-MXD31,8 ANOG/AMP/H

Code: MX5000

Non-contact detection of metal toothed wheels
For very high switching frequencies up to 15,000 Hz
Precise detection of the toothed wheel
Wide operating temperature range
Quick installation with flange adapters

Product characteristics

Electrical design	NPN
Sensing range [mm]	1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Dimensions [mm]	Ø 15 / L = 70

Electrical data

Operating voltage [V]	7...30 DC
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	no

Outputs

Electrical design	NPN
Permanent current rating of switching output DC [mA]	50
Switching frequency DC [Hz]	2...15000
Short-circuit protection	no

Detection zone

Sensing range [mm]	1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Operating distance [mm]	1

Operating conditions

Ambient temperature [°C]

-32...140

Ambient temperature [°C]

125

Note on ambient temperature

for the plug area

Protection

IP 67; IP 69K; (plug: IP 54)

Tests / approvals

EMC

EN 61000-4-2	4 kV CD / 8 kV AD
EN 61000-4-3	10 V/m
EN 61000-4-4	2 kV
EN 61000-4-6	10 V
EN 61000-4-8	30 A/m

Shock resistance

DIN EN 60068-2-27

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Salt spray test

EN 60068/2-11

96 h 5 % NaCl bei 25 °C

MTTF [years]

2247

Mechanical data

Weight [g]	23.5
Dimensions [mm]	Ø 15 / L = 70
Materials	socket: brass; housing: PA; O-ring: FKM
Tightening torque [Nm]	7
Toothed wheel module [mm]	1.25
Installation length [mm]	45

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x AMP-Junior Timer (282 192-1)

Diagrams and graphs

switching signals

	phase shift 90° +/- 20°
	pulse/pause ratio 50 % +/- 10 %
	Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.
