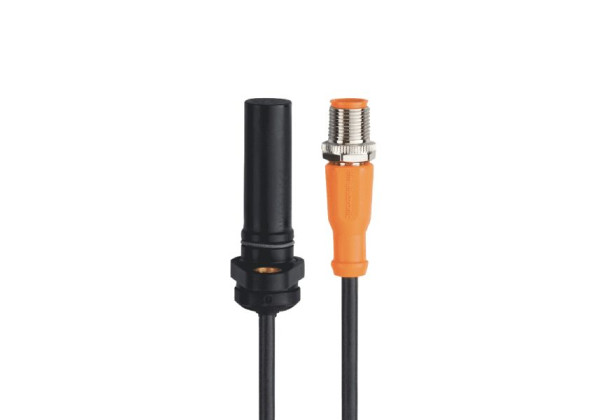

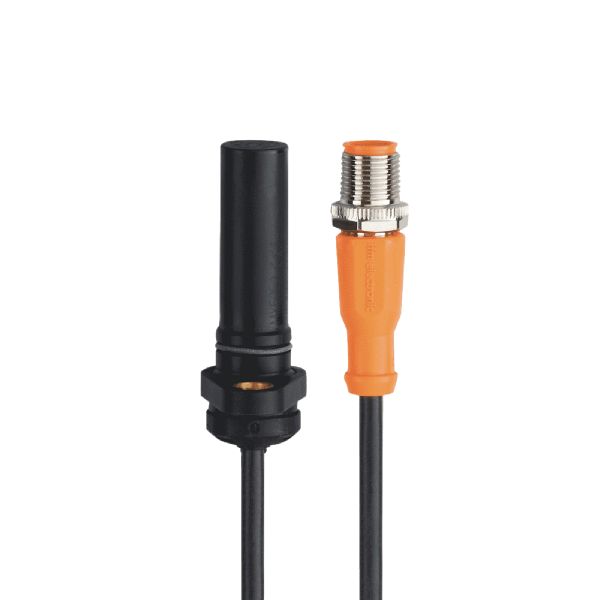

MX5050 - efector100-MXD41,7/BPKG/H/0,5/ZH/US

Code: MX5050

Non-contact detection of metal toothed wheels
For very high switching frequencies up to 15,000 Hz
Precise detection of the toothed wheel
Wide operating temperature range
Quick installation with flange adapters

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Dimensions [mm]	Ø 15 / L = 60

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 40
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	50
Short-time current rating of switching output [mA]	50
Switching frequency DC [Hz]	1...15000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Real sensing range Sr [mm]	1.7 ± 10 %
Operating distance [mm]	1.38

Operating conditions

Ambient temperature [°C]	-32...85
Protection	IP 65; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2	4 kV CD / 8 kV AD
EN 61000-4-3	10 V/m
EN 61000-4-4	2 kV
EN 61000-4-6	10 V/m
EN 61000-4-8	30 A/m
EN 55011	0 class B

Shock resistance

DIN EN 60068-2-27

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Fast temperature change

EN 60068-2-14 Na

TA = -10 °C; TB = 70°C; t1 = 60 min; t2 = < 10 s; 20 cycles

Salt spray test

EN 60068-2-52 Kb

severity level 5 (4 test cycles)

MTTF [years]

3659

Mechanical data

Weight [g]	49.8
Dimensions [mm]	Ø 15 / L = 60
Materials	brass; PA; O-ring: FKM
Tightening torque [Nm]	7
Toothed wheel module [mm]	1.25
Installation length [mm]	45

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.5 m, PUR
Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

switching signals

	phase shift 90° +/- 20°
	pulse/pause ratio 50 % +/- 10 %
	Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MX5050-01 — 13.04.2023 —
