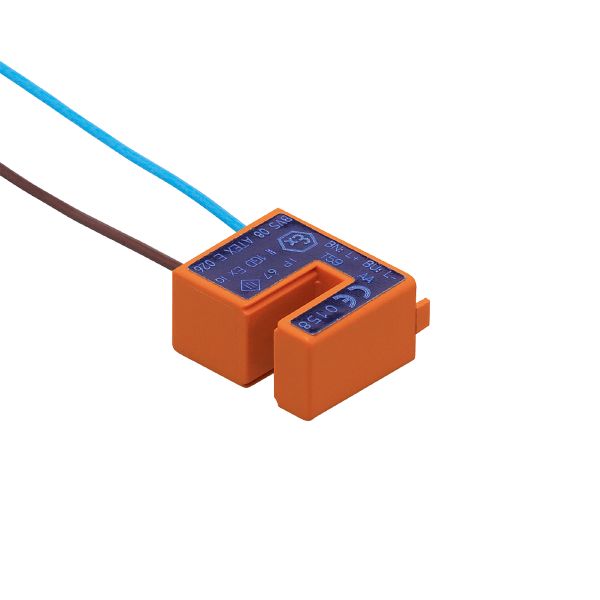

N7S23A - efector100-I7S23,5-N/1G/1D
Brand: IFM Electronic
Code: N7S23A
- For applications in hazardous areas
- Precise detection of pointer positions
- For connection to intrinsically safe circuits
- Very high switching frequency
- Wide operating temperature range
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Housing | rectangular |
| Dimensions [mm] | 19 x 10 x 15 |
Electrical data
| Connection to switching amplifiers | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Supply voltage DC [V] | 5...25; (when used outside the hazardous area) |
| Current consumption [mA] | < 1.2; (disabled; conductive: > 2,1) |
| Protection class | III |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Switching frequency DC [Hz] | 3000 |
Detection zone
| Insertion depth (from the side) [mm] | 5...7 |
|---|
Accuracy / deviations
| Hysteresis [%] | 0...0.05 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...100 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | BVS 08 ATEX E026; IECEx BVS 09.0016 | ||
|---|---|---|---|
| ATEX marking | | ||
| | |||
| EMC |
| ||
| MTTF [years] | 2942 |
Safety classification
| Max. internal capacitance [nF] | 150 |
|---|---|
| Max. internal inductance [µH] | 150 |
Mechanical data
| Weight [g] | 33.4 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 19 x 10 x 15 |
| Slot width [mm] | 3.5 |
| Materials | PBT |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 0.065 m; 2 x 0.14 mm², PTFE |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — N7S23A — 26.07.2017 —
