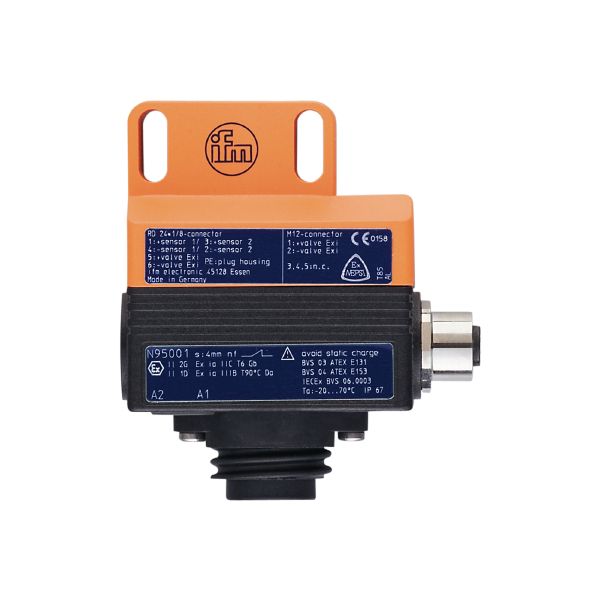

N95001 - efector180-IND2004DN/T1/1D/2G
Brand: IFM Electronic
Code: N95001
- For monitoring valve positions
- For reliable position feedback on valve actuators
- For applications in hazardous areas
- For connection to intrinsically safe circuits
- Direct triggering of the solenoid valve from the sensor
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | 2 x normally closed |
| Sensing range [mm] | 4 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 60 |
Application
| Application | for actuators using standard ISO 5211 (VDI/VDE ) mounting |
|---|
Electrical data
| Connection to switching amplifiers | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,2) |
| Protection class | III |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | 2 x normally closed |
| Switching frequency DC [Hz] | 250 |
Detection zone
| Sensing range [mm] | 4 |
|---|---|
| Real sensing range Sr [mm] | 4 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | BVS 03 ATEX E131; BVS 04 ATEX E153; IECEx BVS 06.0003 | ||
|---|---|---|---|
| ATEX marking | | ||
| | |||
| | |||
| | |||
| EMC |
| ||
| Shock/vibration resistance | 30 g (11 ms) / 10-55 Hz (1 mm) | ||
| MTTF [years] | 1232 |
Safety classification
| Max. internal capacitance [nF] | 150; (per intrinsically safe circuit) |
|---|---|
| Max. internal inductance [µH] | 150; (per intrinsically safe circuit) |
Mechanical data
| Weight [g] | 175 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 26 x 60 |
| Materials | housing: PBT; cover: PC |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: Rd24; coding: A |
|---|
Electrical connection - socket
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — N95001 — 25.11.2020 —
