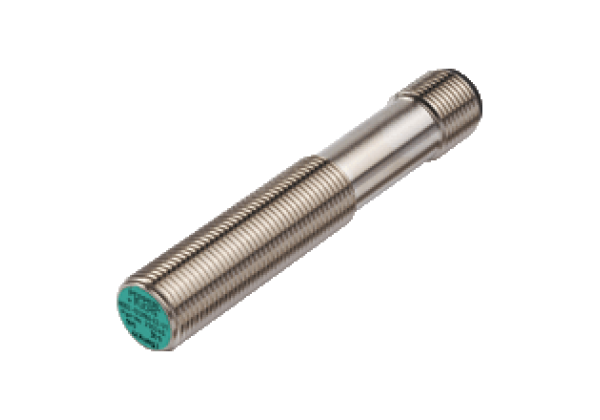

Inductive sensor NCB4-12GM60-B3-V1
Brand: Pepperl+Fuchs
Code: NCB4-12GM60-B3-V1
Switching function: Normally open/closed (NO/NC) programmable, Output type: AS-Interface, Installation: flush, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 26.5... 31.9 V via AS-i bus system, Type of voltage: DC, Connection type: Connector plug M12 x 1 4-pin, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67
Datasheet excerpt: Technical data of NCB4-12GM60-B3-V1
| General specifications | ||
|---|---|---|
| Switching function | Normally open/closed (NO/NC) programmable | |
| Output type | AS-Interface | |
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Assured operating distance | 0... 3.24 mm | |
| Actual operating distance | 3.6... 4.4 mm typ. 4 mm | |
| Reduction factor rAl | 0.23 | |
| Reduction factor rCu | 0.21 | |
| Reduction factor r304 | 0.7 | |
| Node type | Standard node | |
| AS-Interface specification | V2.1 | |
| Required gateway specification | ≥ V2.1 | |
| Output type | 2-wire | |
| Nominal ratings | ||
| Operating voltage | 26.5... 31.9 V via AS-i bus system | |
| Switching frequency | 0... 500 Hz | |
| Hysteresis | 1... 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Voltage drop at IL | ||
| Voltage drop IL = 20 mA, switching element on | 3.4... 5 V typ. 4.3 V | |
| No-load supply current | ≤ 25 mA | |
| Time delay before availability | ≤ 1000 ms | |
| Switching state indicator | dual-LED, yellow | |
| Error indicator | dual-LED, red | |
| Functional safety related parameters | ||
| MTTFd | 2140 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector plug M12 x 1 4-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
