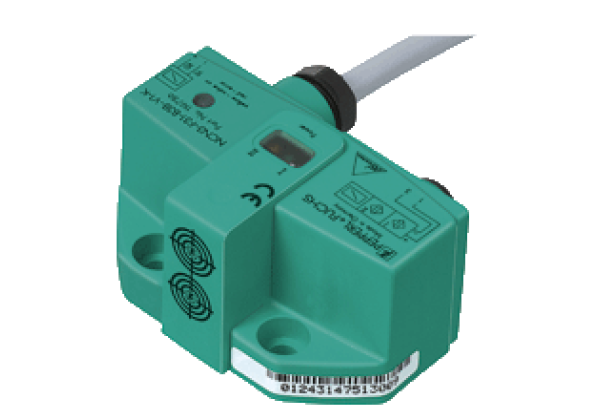

Inductive sensor NCN3-F31-B3-V1-K
Brand: Pepperl+Fuchs
Code: NCN3-F31-B3-V1-K
Valve position detection, Solenoid valve output, Switching function: Normally open/closed (NO/NC) programmable, Output type: AS-Interface, Installation: flush mountable, Construction type: Double sensor, Series: Double sensor, Operating voltage: 26.5... 31.9 V via AS-i bus system, Type of voltage: DC, Connection (system side): 4-pin, M12 x 1 connector, Housing material: PBT, Degree of protection: IP67
Datasheet excerpt: Technical data of NCN3-F31-B3-V1-K
| Product Description |
|---|
| Valve positioner and valve control module |
| General specifications | ||
|---|---|---|
| Switching function | Normally open/closed (NO/NC) programmable | |
| Output type | AS-Interface | |
| Rated operating distance | 3 mm | |
| Installation | flush mountable | |
| Assured operating distance | 0... 2.43 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1.2 | |
| Node type | Standard node | |
| AS-Interface specification | V2.1 | |
| Required gateway specification | ≥ V2.1 | |
| Nominal ratings | ||
| Operating voltage | 26.5... 31.9 V via AS-i bus system | |
| Switching frequency | 0... 100 Hz | |
| No-load supply current | ≤ 35 mA | |
| Functional safety related parameters | ||
| MTTFd | 842 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED PWR | AS-Interface voltage; LED green | |
| LED IN | switching state (input); LED yellow | |
| LED OUT | binary LED yellow/red yellow: switching state red: lead breakage/short-circuit | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | 100 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Electromagnetic compatibility | EN 50295:1999-10 | |
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Connection (system side) | 4-pin, M12 x 1 connector | |
| Connection (valve side) | 0.5 m, PVC cable | |
| Core cross section (valve side) | 0.75 mm2 | |
| Connector housing | metal | |
| Housing material | PBT | |
| Degree of protection | IP67 | |
| Cable | ||
| Cable diameter | 6 mm ± 0.2 mm | |
| Bending radius | > 10 x cable diameter | |
| Tightening torque, fastening screws | 4 Nm... 5 Nm | |
| Note | valve voltage limited to 26,4 V max.; valve power 2,5 W max. | |
