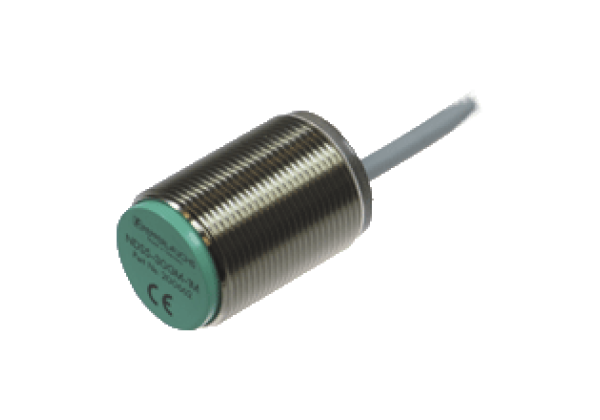

WIS transmitter primary NDP5-30GM-5M
Brand: Pepperl+Fuchs
Code: NDP5-30GM-5M
Datasheet excerpt: Technical data of NDP5-30GM-5M
| Product Description |
|---|
| Inductive transmitter system |
| General specifications | ||
|---|---|---|
| Installation | non-flush | |
| Transfer distance | 0... 5 mm | |
| Output type | 2-wire | |
| Functional safety related parameters | ||
| MTTFd | 31930 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | 0... 50 °C (32... 122 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross section | 0.75 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| Cable | ||
| Cable diameter | 6 mm ± 0.2 mm | |
| Bending radius | > 10 x cable diameter | |
| Installation | screw mounting | |
| Free zone | ≥ 3 mm | |
| Spacing to metal walls | ≥ ∅ 50 mm | |
| Security zone | ≥ 60 mm x 15 mm | |
| General information | ||
| Note | Maximum cable length between WIS module and WIS transmitter must not exceed 5 m. | |
