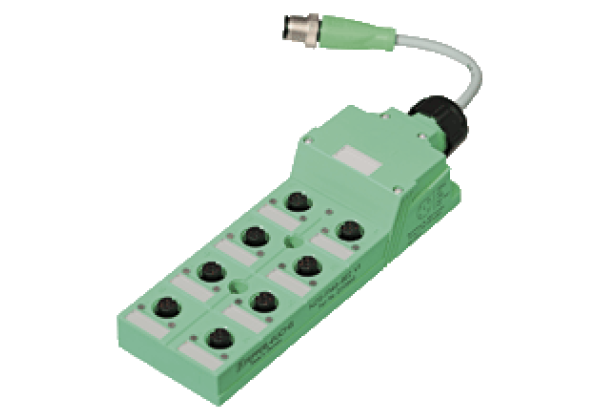

WIS module secondary NDS-F146-8E2-V1

Code: NDS-F146-8E2-V1

Datasheet excerpt: Technical data of NDS-F146-8E2-V1

Product Description
Inductive transmitter system

Nominal ratings
Number of signal channels		8
Signal transfer direction		from secondary side to primary side
Sensor supply voltage		12 V ± 10 % , overload and short-circuit resistant
Ripple		≤ 5 %
Transfer power		max. 2.5 W (1.5 W at 5 mm)
Load step		≤ 100 mA
Functional safety related parameters
MTTF_d		465 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Input
Number		8
Input type		Input for sensor signals
Connectable sensor types		DC, 3-wire , PNP ( switched high )
Input current		≤ 1 mA
Internal resistor		≥ 15 kΩ
Compliance with standards and directives
Directive conformity
	EMC Directive 89/336/EEC	EN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999
Standard conformity
	Standards	EN 60947-5-2:2007 IEC 60947-5-2:2007
Approvals and certificates
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		0... 50 °C (32... 122 °F)
Storage temperature		-25... 85 °C (-13... 185 °F)
Mechanical specifications
Degree of protection		IP65
Material
	Housing	PA 66-FR
Installation		screw mounting
Mass		140 g
General information
Note		Maximum cable length between WIS module and WIS transmitter must not exceed 5 m.
