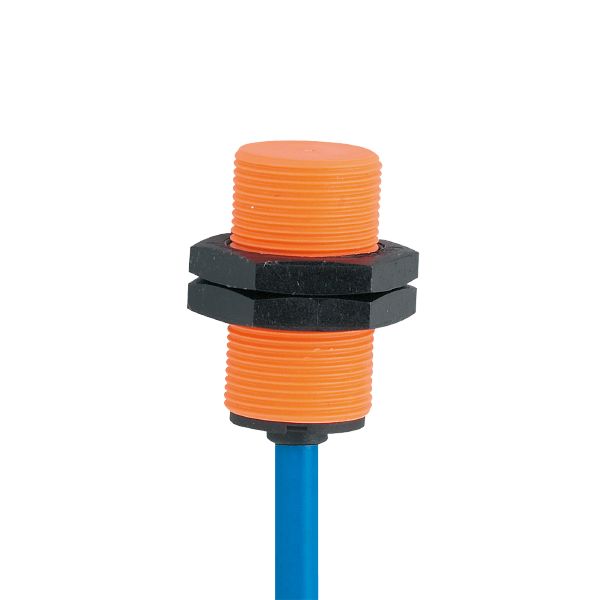

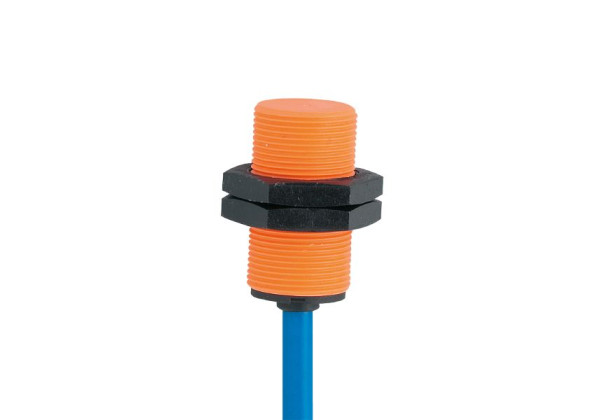

NG5019 - efector100-IG-2005-N/6M/1D/1G/2G
Brand: IFM Electronic
Code: NG5019
- For applications in hazardous areas
- For connection to intrinsically safe circuits
- Particularly short housing for use where space is restricted
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Sensing range [mm] | 5 |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 33 |
Electrical data
| Connection to switching amplifiers | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Supply voltage DC [V] | 7.5...30; (when used outside the hazardous area) |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,1) |
| Protection class | II |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Permanent current rating of switching output DC [mA] | 30; (when used outside the hazardous area) |
| Switching frequency DC [Hz] | 720 |
Detection zone
| Sensing range [mm] | 5 |
|---|---|
| Real sensing range Sr [mm] | 5 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | PTB 01 ATEX 2191; BVS 04 ATEX E153; TIIS TC16108; IECEx BVS 06.0003 | ||
|---|---|---|---|
| ATEX marking | | ||
| | |||
| | |||
| EMC |
| ||
| Shock/vibration resistance | 30 g (11 ms) / 10-55 Hz (1 mm) | ||
| MTTF [years] | 4697 |
Safety classification
| Max. internal capacitance [nF] | 146 |
|---|---|
| Max. internal inductance [µH] | 49 |
Mechanical data
| Weight [g] | 313.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M18 x 1 / L = 33 |
| Thread designation | M18 x 1 |
| Materials | PBT |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 6 m, PVC; 2 x 0.5 mm² |
|---|
