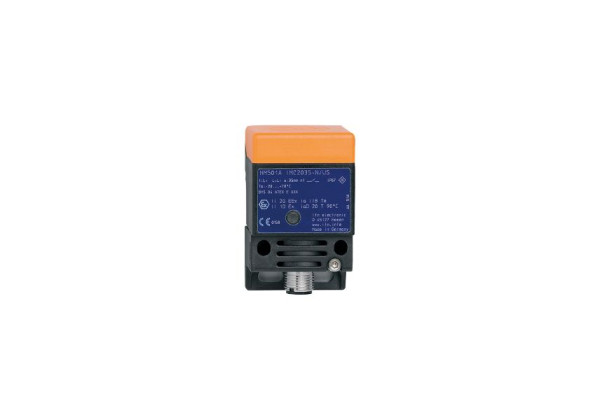

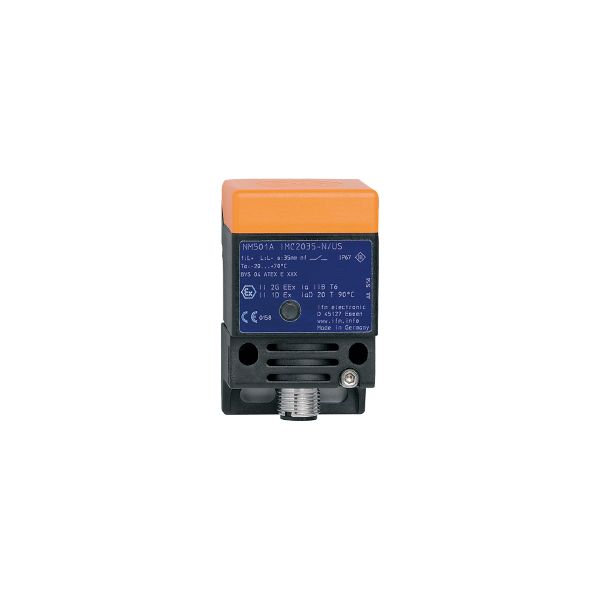

NM501A - efector100-IMC2035-N/US/2G/1D

Code: NM501A

Product characteristics

Application

Special feature	Gold-plated contacts

Electrical data

Connection to switching amplifiers	yes
Switching amplifiers	connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]	8.2; (1kΩ)
Supply voltage DC [V]	7.5...30; (when used outside the hazardous area)
Current consumption [mA]	< 1; (disabled; conductive: > 2,1)
Protection class	III

Outputs

Electrical design	NAMUR
Output function	normally closed
Permanent current rating of switching output DC [mA]	30; (when used outside the hazardous area)
Switching frequency DC [Hz]	100

Detection zone

Sensing range [mm]	35
Real sensing range Sr [mm]	35 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

Approval

BVS 04 ATEX E 091 X; IECEx BVS 06.0003

ATEX marking

II 2G Ex ia IIB T6 Gb

II 1D Ex ia IIIC T 90°C Da

EMC

EN 60947-5-6

Shock/vibration resistance

30 g (11 ms) / 10-55 Hz (1 mm)

MTTF [years]

2935

Safety classification

Max. internal capacitance [nF]	220
Max. internal inductance [µH]	710

Mechanical data

Weight [g]	189
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 66
Materials	housing: PPE; sensing face: PPE orange; end cap: PPS; mounting adapter: PPS black; screw: steel galvanised
