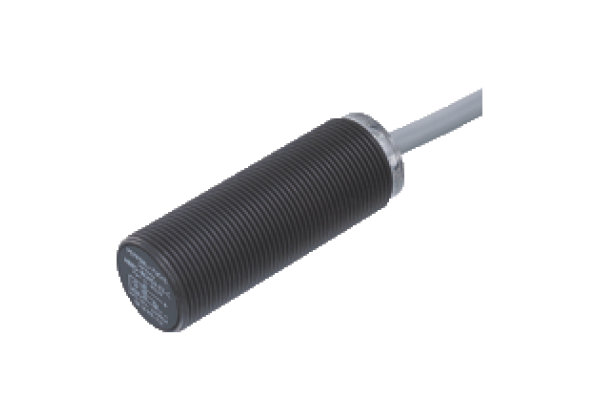

Inductive sensor NRB8-18GM40-E2-IO-C
Brand: Pepperl+Fuchs
Code: NRB8-18GM40-E2-IO-C
Reduction factor 1, magnetic field resistant, Weld immune proximitry switches, Switching function: Normally open/closed (NO/NC) programmable, Output type: PNP, Rated operating distance: 8 mm (factory setting), Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10... 30 V DC
Datasheet excerpt: Technical data of NRB8-18GM40-E2-IO-C
| General specifications | ||
|---|---|---|
| Switching function | Normally open/closed (NO/NC) programmable | |
| Output type | PNP | |
| Rated operating distance | 8 mm (factory setting) | |
| Near operating distance | 5 mm (can be activated by software) | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0... 6.48 mm | |
| Reduction factor rAl | 1 | |
| Reduction factor rCu | 1 | |
| Reduction factor r304 | 1 | |
| Reduction factor rSt37 | 1 | |
| Output type | 3-wire | |
| Nominal ratings | ||
| Operating voltage | 10... 30 V DC | |
| Switching frequency | 0... 1500 Hz (switch point mode) 0... 150 Hz (window mode, switch point mode with stability alarm) | |
| Hysteresis | typ. 3 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 0.5 V | |
| Operating current | 0... 200 mA | |
| Off-state current | 0... 0.5 mA typ. 60 µA at 25 °C | |
| No-load supply current | ≤ 15 mA | |
| Time delay before availability | max. 150 ms | |
| Constant magnetic field | 200 mT | |
| Alternating magnetic field | 200 mT | |
| Status indicator | LED yellow | |
| Functional safety related parameters | ||
| MTTFd | 362 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Interface | ||
| Interface type | IO-Link ( via C/Q ) | |
| IO-Link revision | 1.1 | |
| Device ID | 0x201112 (2101522) | |
| Transfer rate | COM2 (38.4 kBit/s) | |
| Min. cycle time | 2.3 ms | |
| Process data width | Process data input (control system side): 2 Bit Process data output (control system side): none | |
| SIO mode support | yes | |
| Compatible master port type | A | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 | |
| Approvals and certificates | ||
| Protection class | II | |
| Rated insulation voltage | 60 V | |
| Rated impulse withstand voltage | 800 V | |
| UL approval | cULus Listed, General Purpose Class 2 power source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross section | 0.34 mm2 | |
| Housing material | Brass, PTFE coated | |
| Sensing face | PPS | |
| Degree of protection | IP67 | |
| Cable | ||
| Cable diameter | 4.3 mm ± 0.1 mm | |
| Bending radius | > 10 x cable diameter | |
| Mass | 101 g | |
| Factory settings | ||
| Default setting | operating mode = switch point mode with stability alarm switching function = Normally open (NO) switching distance = 8 mm | |
| General information | ||
| Scope of delivery | 2 self locking nuts in scope of delivery | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
