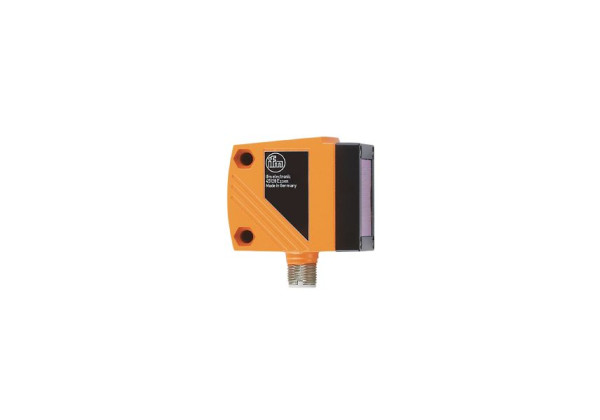

O1D121 Photoelectric distance sensor O1DLF3KG
Brand: IFM Electronic
Code: O1D121
- Reliable optical distance measurement with high ranges up to 10 m
- Two switching outputs, one of them programmable as analogue output
- Scalable measuring range and window function
- Use in applications with background suppression
- Temperature-controlled lens heating
Product characteristics
| Laser protection class | 2 |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage [V] | 23...25 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption [mA] | < 150; (250: <5 °C) |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (programmable) |
| Max. current load per output [mA] | 200 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20; (IEC 61131-2) |
| Max. load [Ω] | 250 |
| Analogue voltage output [V] | 0...10; (IEC 61131-2) |
| Min. load resistance [Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Max. light spot width [mm] | 15 |
|---|---|
| Max. light spot height [mm] | 15 |
| Light spot dimensions refer to | 10 m |
| Background suppression [m] | < 19 |
Measuring/setting range
| Measuring range [m] | 0.2...10; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Sampling rate [Hz] | 1...50 |
Operating conditions
| Ambient temperature [°C] | -26...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser protection class | 2 | ||||||||||||||||||||
| Notes on laser protection |
| ||||||||||||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 249.2 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 59 x 42 x 52 |
| Materials | housing: diecast zinc; front pane: glass; LED window: PC |
| Lens alignment | side lens |
Displays / operating elements
| Display |
| ||||||
|---|---|---|---|---|---|---|---|
| Operating elements |
|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O1D121-00 — 20.10.2022 —
