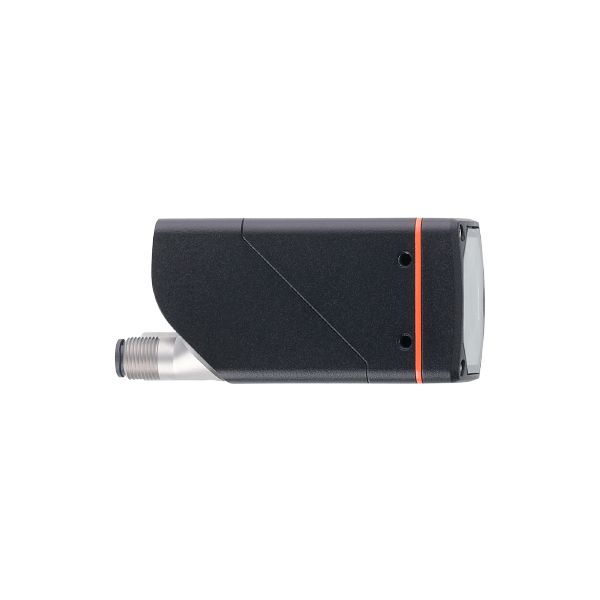

O2D510 Object recognition sensor O2DCRDKG/E1/E4/EF/GM/TB/S/16

Code: O2D510

Combinable 2D inspection of contours and surfaces for maximum quality assurance
Powerful algorithms master even demanding requirements
User-friendly software simplifies inspection task set-up
Reliable functioning in changing light conditions
Electric focus on details

Product characteristics

Type of light	RGBW
Image resolution [px]	1280 x 960
Max. reading rate [Hz]	40

Application

Special feature	polarisation filter

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 300; (24V DC; with switched outputs: < 400 mA)
Protection class	III
Reverse polarity protection	yes
Type of light	RGBW
Wave length [nm]	625; 525; 453
Image sensor	CMOS image sensor black/white

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of digital outputs: 1

Inputs

Trigger	external; 24 V PNP/NPN (IEC 61131-2 Typ 3); TCP/IP; PROFINET; internal
Number of digital inputs	1

Outputs

Electrical design	PNP/NPN; (parameterisable)
Number of digital outputs	1; (configurable)
Max. voltage drop switching output DC [V]	1
Max. current load per output [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Field of view size [mm]

Operating distance	field of view
85	28 x 21
300	92 x 69
500	152 x 114
1000	302 x 227
1500	453 x 340
2000	603 x 452
2500	753 x 564

Operating distance [mm]

> 85

Image resolution [px]

1280 x 960

Lens type

standard

Polarisation filter available

yes

Max. reading rate [Hz]

Software / programming

Parameter setting options	via PC with ifm Vision Assistant

Interfaces

Communication interface	Ethernet

Ethernet

Number of Ethernet interfaces

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10 MBit/s; 100 MBit/s

Protocol

TCP/IP; PROFINET

Factory settings

IP address: 192.168.0.69

subnet mask: 255.255.255.0 (Class C)

gateway IP address: 192.168.0.201

MAC address: see type label

Usage type

parameter setting; data transmission

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...70
Max. relative air humidity [%]	90; (non condensing)
Max. height above sea level [m]	4000
Protection	IP 65
Pollution degree	2

Tests / approvals

EMC

EN IEC 61000-6-4 radiation of interference	industrial environments
EN IEC 61000-6-2 immunity	industrial environments

Shock resistance

EN 60068-2-27	50 g 11 ms / not repetitive
EN 60068-2-27	40 g 6 ms / repetitive

Vibration resistance

EN 60068-2-6

2 g (10... 150 Hz)

Photobiological safety

risk group 1; (EN 62471)

Electrical protection

EN IEC 61010-2-201

electrical supply only via PELV circuits

Mechanical data

Weight [g]	622.35
Type of mounting	screw mounting; (bore hole M4 x 7mm)
Dimensions [mm]	45 x 45 x 86
Materials	housing: diecast zinc powder-coated; front pane: Gorillaglas; LED window: PC; pushbutton: POM
Sealing material	FKM
Tightening torque [Nm]	2.1

Displays / operating elements

Display

function	2 x LED, green
function	2 x LED, yellow
Multi-function button	2 x LED, green/yellow

Operating elements

1	Multi-function button

Accessories

Accessories (optional)

Mounting accessories

Protective panes

Remarks

Pack quantity	1 pcs.

Electrical connection - Ethernet

	Connector: 1 x M12; coding: D; Moulded body: stainless steel; Sealing: FKM

Electrical connection - supply

	Connector: 1 x M12; coding: L; Moulded body: stainless steel
