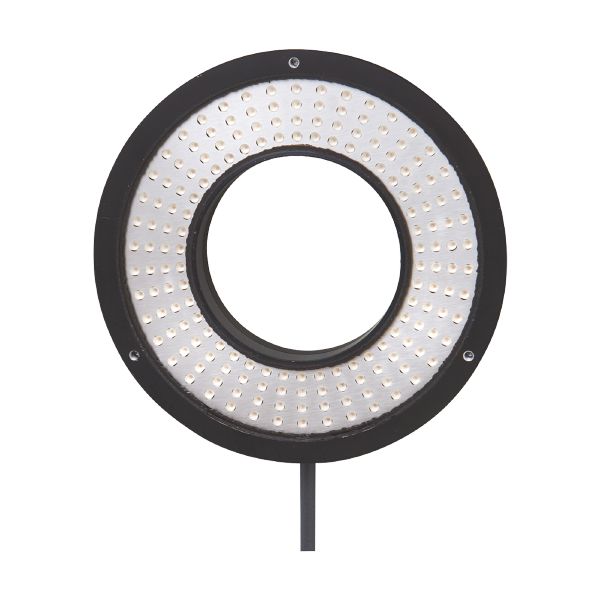

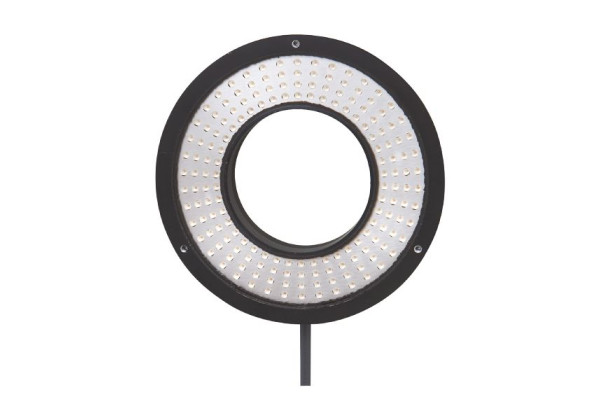

O2D917 - efector250-RINGLIGHT 106x66 IR/0,3M/US

Code: O2D917

Homogeneous and virtually shadow-free illumination of the object
Permanent light or pulse operation
Pulse operation with higher light intensity to reduce the exposure time
Emission of invisible infrared light
Compact and robust housing

Product characteristics

Type of light	infrared light

Application

Illuminated field [mm]	Ø 106 / Ø 66; (external / internal)
Design	ring
Type of operation	high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)

Electrical data

Operating voltage [V]	24 DC
Current consumption [mA]	operating mode "permanent operation": 800; operating mode "high light intensity": 1400
Type of light	infrared light
Wave length [nm]	875

Inputs

Trigger	24 V PNP

Detection zone

Angle of aperture cylindrical [°]	50

Operating conditions

Ambient temperature [°C]	-10...55
Storage temperature [°C]	-25...75
Protection	IP 65
Overheat protection	yes; (deactivation at 65...75 °C)

Tests / approvals

Photobiological safety	risk group 1; (DIN EN 62471:2008; Do not stare into light source.; danger of glare and irritations; Align the device to prevent eye exposure to the light source.)

Mechanical data

Weight [g]

486

Dimensions [mm]

Ø 122 / L = 20.5

Materials

aluminium black anodised

Lens material

glass

Displays / operating elements

Display

	combined LED, three-colour
illumination status	yellow
operation	green
excess temperature	red

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
Connection	Connector: 1 x M12; coding: A
