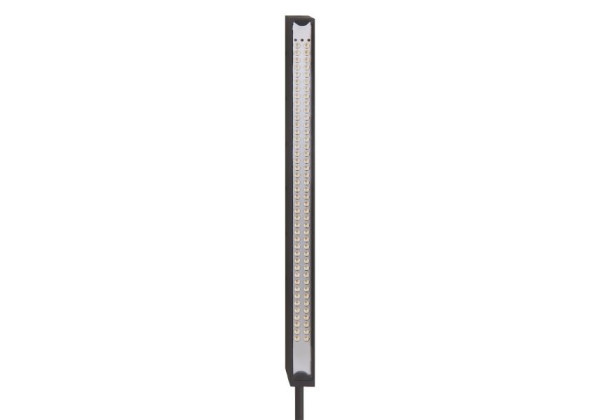

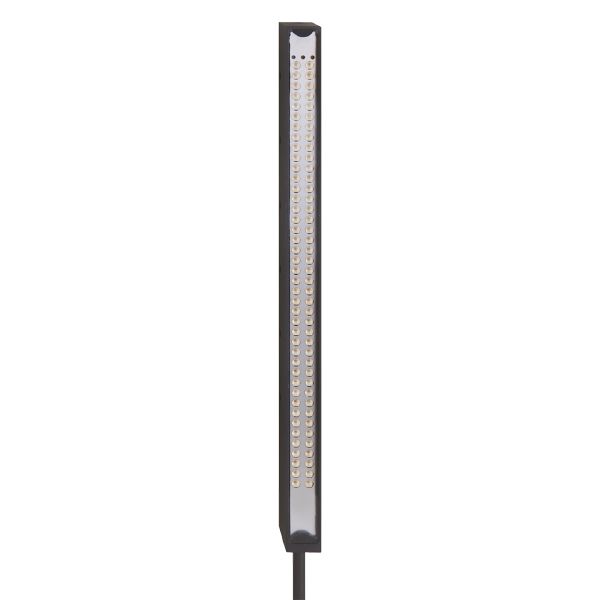

O2D925 - efector250-BAR LIGHT 10x150 IR/0,3M/US
Brand: IFM Electronic
Code: O2D925
Product characteristics
| Type of light | infrared light |
|---|
Application
| Illuminated field [mm] | 10 x 150 |
|---|---|
| Design | bars |
| Type of operation | high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible) |
Electrical data
| Operating voltage [V] | 24 DC |
|---|---|
| Current consumption [mA] | operating mode "permanent operation": 415; operating mode "high light intensity": 640 |
| Type of light | infrared light |
| Wave length [nm] | 875 |
Inputs
| Trigger | 24 V PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -10...55 |
|---|---|
| Storage temperature [°C] | -25...75 |
| Protection | IP 65 |
| Overheat protection | yes; (deactivation at 65...75 °C) |
Tests / approvals
| Photobiological safety | risk group 1; (DIN EN 62471:2008) |
|---|
Mechanical data
| Weight [g] | 218.5 | |
|---|---|---|
| Dimensions [mm] | 200 x 13 x 18 | |
| Materials | aluminium black anodised | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 0.3 m, PUR, black; 4 x 0.34 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2D925-01 — 11.04.2017 —
