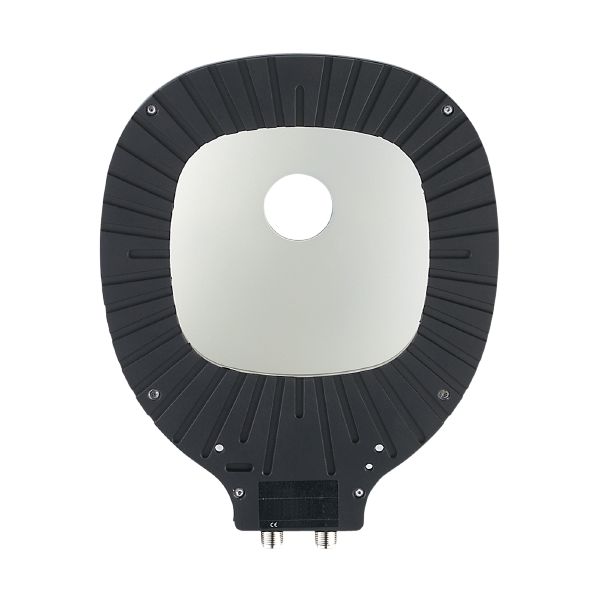

O2D932 - Dome Light 130 WH IR/ US
Brand: IFM Electronic
Code: O2D932
- Homogeneous light in four different colours
- Two colour combinations selectable: white/infrared or cyan/red
- Four lighting segments can be controlled separately
- Permanent light or pulse operation with 4 times more light
- No external control unit necessary
Product characteristics
| Type of light | white light; infrared light |
|---|
Application
| Illuminated field [mm] | 130 x 130 |
|---|---|
| Design | Dome |
| Type of operation | normal light intensity (permanent operation possible); High light intensity (pulsed) |
Electrical data
| Operating voltage [V] | 24 DC |
|---|---|
| Current consumption [mA] | operating mode "permanent operation": 540; operating mode "high light intensity": 2580 |
| Protection class | III; (PELV) |
| Type of light | white light; infrared light |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 1 |
|---|
Inputs
| Trigger | 24 V PNP/NPN; external |
|---|---|
| Number of digital inputs | 1 |
Operating conditions
| Ambient temperature [°C] | -10...40 |
|---|---|
| Storage temperature [°C] | -20...60 |
| Protection | IP 65 |
Tests / approvals
| Photobiological safety | risk group 1; (DIN EN 62471) |
|---|
Mechanical data
| Weight [g] | 1018.15 |
|---|---|
| Dimensions [mm] | 256.8 x 197 x 106.8 |
| Materials | housing: aluminium black anodised; Cover: ABS |
| Tightening torque [Nm] | 0.5...1.5 |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - parameter setting
| Connector: M12; coding: A |
Electrical connection - power supply
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2D932-00 —
