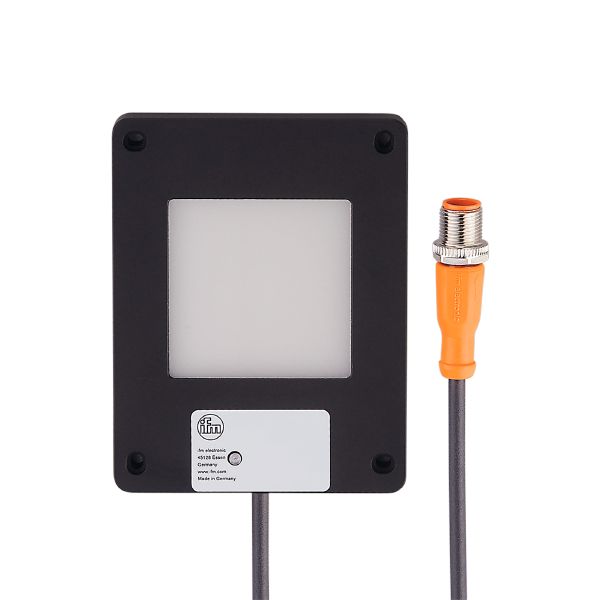

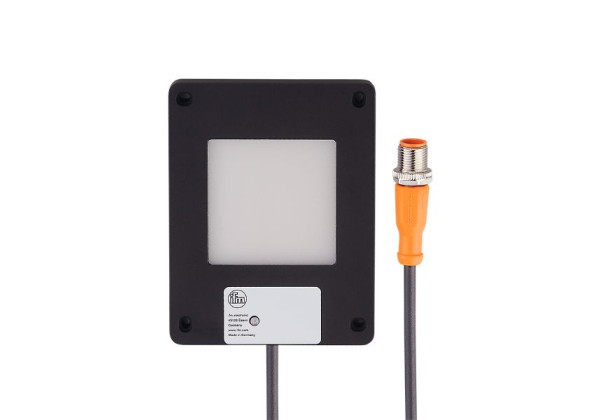

O2D942 External illumination BACKLIGHT 50X50 RT/0,3M/US
Brand: IFM Electronic
Code: O2D942
- Powerful permanent light for contour and position verification
- Longer life through pulse operation
- Homogeneous illumination with red or infrared light
- Versions with three different illuminated area sizes
- Space-saving design thanks to ultra-flat housing
Product characteristics
| Type of light | red light |
|---|
Application
| Special feature | Gold-plated contacts |
|---|---|
| Illuminated field [mm] | 50 x 50 |
| Design | backlight |
| Type of operation | Permanent light or pulse operation |
Electrical data
| Operating voltage tolerance [%] | -10...10 |
|---|---|
| Operating voltage [V] | 24 DC |
| Current consumption [mA] | < 205 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 617 |
Inputs
| Trigger | 5...24 V |
|---|
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Protection | IP 54 |
| Overheat protection | yes; (> 50 °C) |
Tests / approvals
| Photobiological safety | exempt group; (EN 62471) |
|---|---|
| MTTF [years] | 308 |
Mechanical data
| Weight [g] | 264.4 | |
|---|---|---|
| Dimensions [mm] | 105 x 81 x 9.8 | |
| Materials | aluminium | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 0.30 m, PUR |
|---|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2D942-00 — 14.09.2020 —
