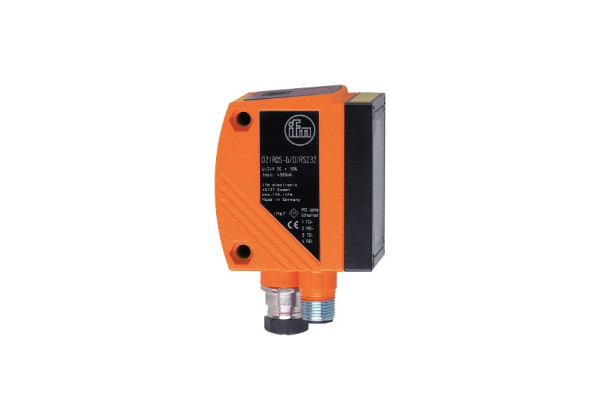

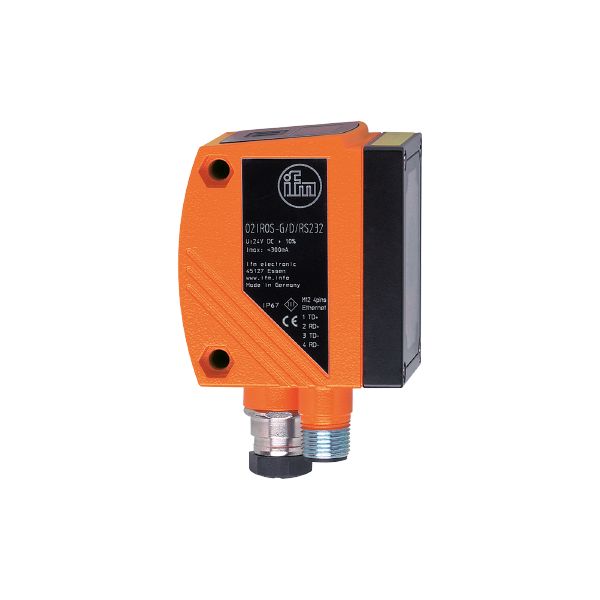

O2I351 - efector190-O2IIOS-G/D/RS232/E1/E2

Code: O2I351

Orientation-independent reading of 1D and 2D codes
Recognition of more than 30 different code types
Integrated code comparator system in the sensor
Segmentable illumination for applications with problem surfaces

Product characteristics

Type of light	infrared light
Image resolution [px]	640 x 480
Max. reading rate [Hz]	20

Electrical data

Operating voltage tolerance [%]	10
Operating voltage [V]	24 DC
Current consumption [mA]	< 300
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	850
Image sensor	CMOS image sensor black/white
Internal lighting	yes; (infrared: 850 nm 4 lighting segments individual control via PC operating program)
Laser marking	yes; (red; Laser protection class 2 DIN EN 60825-1)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Inputs

Trigger	internal; 24 V PNP (IEC 61131-2 Typ 1); RS-232; TCP/IP; EtherNet/IP

Outputs

Total number of outputs	2
Number of digital outputs	2; (configurable)
Output function	24 V PNP
Max. voltage drop switching output DC [V]	2
Max. current load per output [mA]	100
Short-circuit protection	yes
Overload protection	yes

Detection zone

Field of view size [mm]

Operating distance	field of view	Smallest detectable object	Resolution
50	16 x 12
100	32 x 24
200	64 x 48

Operating distance [mm]

> 50

Image resolution [px]

640 x 480

Lens type

standard

Readable codes

Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417; QR; Micro-QR; Aztec Code; GS1 ECC200; GS1 QR Code; GS1 Aztec Code

Legible fonts

Industrial; Document

Text recognition

yes

Omnidirectional reading

yes

Max. inclination to the image plane [°]

Max. reading rate [Hz]

Software / programming

Parameter setting options	via two pushbuttons and 10-segment display or via PC / notebook with operating software

Interfaces

Communication interface	Ethernet; RS232
Number of R232 interfaces	1

Ethernet

Number of Ethernet interfaces

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10; 100

Protocol

TCP/IP; UDP; EtherNet/IP

Factory settings

IP address: 192.168.0.79

subnet mask: 255.255.255.0

gateway IP address: 192.168.0.201

MAC address: see type label

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...85
Protection	IP 67

Tests / approvals

EMC

radiation of interference	EN 61326
immunity	EN 61326

Shock resistance

IEC 60028-2-27

Vibration resistance

IEC 60028-2-6

UL approval

UL Approval no.

T001

Mechanical data

Weight [g]	414
Dimensions [mm]	60 x 42 x 53.5
Materials	housing: diecast zinc powder-coated; front pane: glass; LED window: PC

Displays / operating elements

Display

function	3 x LED, green
switching status	4 x LED, yellow
	10-segment display, 4-digit

Accessories

Accessories (optional)

Operating software

Mounting accessories

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection - Ethernet

	Connector: 1 x M12; coding: D

Electrical connection - RS-232

	Connector: 1 x M12; coding: A
