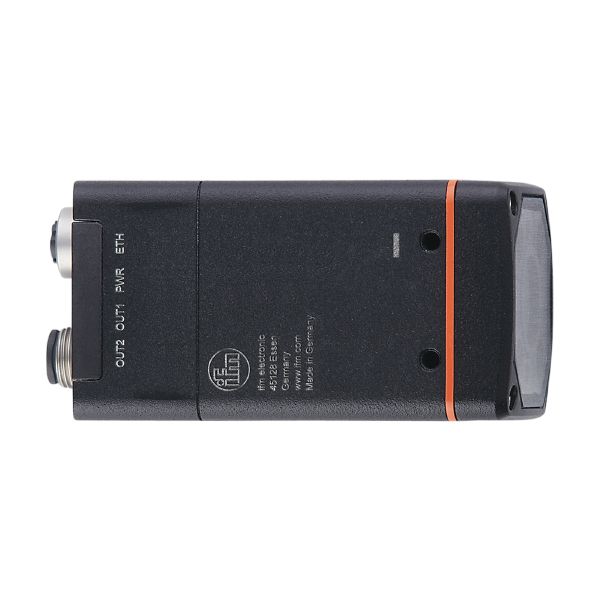

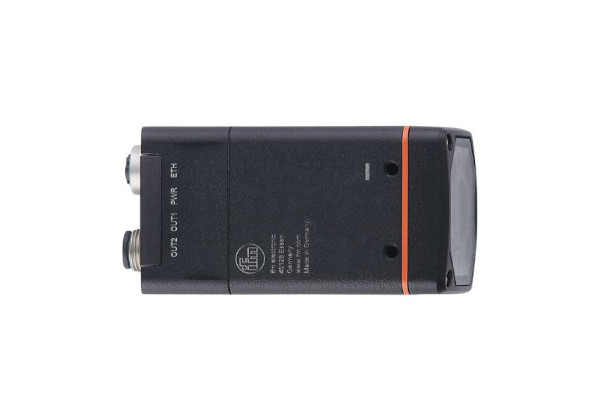

O2I503 1D/2D code readers O2IIRDKG/E1/E2/EF/VF/TB/W

Code: O2I503

Multicode reader with wide-angle lens
Internal infrared illumination
Process interface TCP/IP and Ethernet/IP
Several codes and text lines simultaneously
Integrated memory stick

Product characteristics

Type of light	infrared light
Image resolution [px]	1280 x 960
Max. reading rate [Hz]	40

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 400; (24V DC)
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	850
Image sensor	CMOS image sensor black/white

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of digital outputs: 2

Inputs

Trigger	external; 24 V PNP/NPN (IEC 61131-2 Typ 3); TCP/IP; EtherNet/IP; internal
Number of digital inputs	1

Outputs

Total number of outputs	2
Number of digital outputs	2; (configurable)
Output function	24 V PNP/NPN
Max. voltage drop switching output DC [V]	1
Max. current load per output [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Field of view size [mm]

Operating distance	field of view
35	25 x 19
300	184 x 138
500	304 x 228
1000	604 x 453

Operating distance [mm]

> 35

Image resolution [px]

1280 x 960

Lens type

Wide angle

Readable codes

Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417; QR; Micro-QR; Aztec Code; GS1 ECC200; GS1 QR Code; GS1 Aztec Code

Code quality based on

		ISO / IEC 15415
		ISO / IEC 15416
		AIM DPM
		ISO/IEC TR 29158
		SEMI T10

Legible fonts

Industrial; Document; OCR-A; OCR-B; Pharma; Semi; Universal; Dot Print

Omnidirectional reading

yes

Max. inclination to the image plane [°]

Max. reading rate [Hz]

Software / programming

Parameter setting options	teach button; via PC with ifm Vision Assistant

Interfaces

Communication interface	Ethernet

Ethernet

Number of Ethernet interfaces

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10 MBit/s; 100 MBit/s

Protocol

TCP/IP; EtherNet/IP

Factory settings

IP address: 192.168.0.69

subnet mask: 255.255.255.0 (Class C)

gateway IP address: 192.168.0.201

MAC address: see type label

Usage type

parameter setting; data transmission

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...70
Protection	IP 65

Tests / approvals

EMC

EN 61000-6-4 radiation of interference	industrial environments
EN IEC 61000-6-2 immunity	industrial environments

Shock resistance

EN 60068-2-27	50 g 11 ms / not repetitive
EN 60068-2-27	40 g 6 ms / repetitive

Vibration resistance

EN 60068-2-6

2 g (10... 150 Hz)

Laser protection class

Notes on laser protection

Caution:	laser light
laser class:	1
	EN / IEC60825-1:2007
	EN / IEC60825-1:2014
	Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.

Photobiological safety

exempt group; (EN 62471)

Electrical protection

EN 61010-2-201

electrical supply only via PELV circuits

MTTF [years]

Mechanical data

Weight [g]	600.5
Dimensions [mm]	45 x 45 x 86
Materials	housing: diecast zinc powder-coated; front pane: Gorillaglas; LED window: PC; pushbutton: POM
Sealing material	FKM

Displays / operating elements

Display

function	2 x LED, green
function	2 x LED, yellow
Teach-Funktion	1 x LED, green
Teach-Funktion	1 x LED, yellow

Operating elements

1 x	Teach-Taste

Accessories

Accessories (optional)

Operating software

Mounting accessories

Adapter cable

protective panes and filter panes

Remarks

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2I503-00 — 13.04.2023 —
