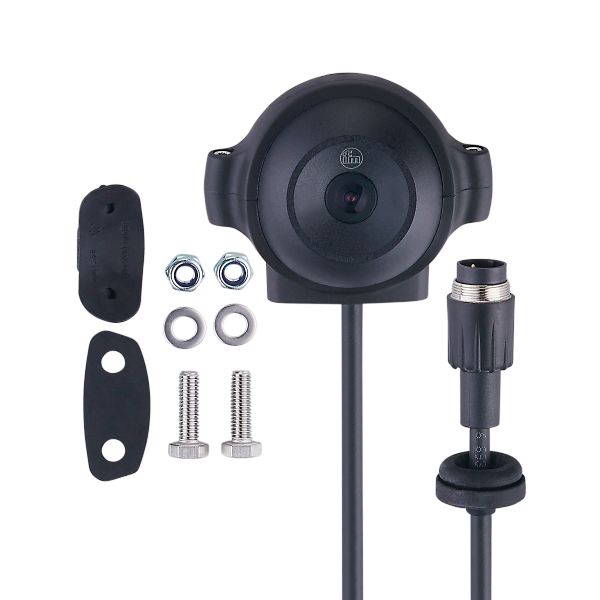

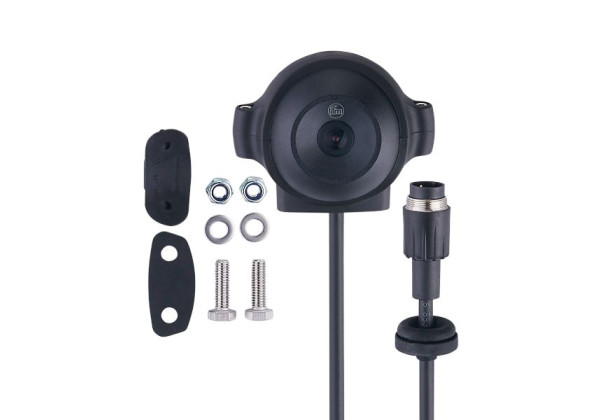

O2M202 Analogue camera for mobile machines O2MXOOKG/A1/GM/115

Code: O2M202

Analogue video output for rear area monitoring in mobile machines
Encapsulated, weather-proof housing
High shock and vibration resistance
Temperature-controlled lens heating
EU type approval E4

Product characteristics

Image resolution [px]	640 x 480
Angle of aperture [°]	118 x 89

Application

Special feature	Screened cable

Electrical data

Operating voltage [V]	12...32 DC
Current consumption [mA]	< 280; (with lens heating)
Overvoltage protection	yes
Image sensor	¼' 4:3 VGA CMOS image sensor Color
Switch-on peak current [mA]	1000
Switch-on peak current duration [ms]	2

Outputs

Video output	PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω

Detection zone

Field of view size [mm]

Operating distance	field of view
1000	3330 x 1970
2000	6660 x 3930
3000	9990 x 5900
4000	13310 x 7860
5000	16640 x 9830

Image resolution [px]

640 x 480

Angle of aperture [°]

118 x 89

Light sensitivity [LUX]

< 0.05

Dynamic range [dB]

> 80

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC

DIN EN 61000-6-4	industrial environments
DIN EN 61000-6-2	industrial environments
UN-ECE R10

Shock resistance

50 g

Vibration resistance

Frequency range 24...2000 Hz	(15.3 x 9.81 m/s²)rms
PSD (g²/Hz)	0.04...0.1

Salt spray test

IEC 60068-5-52

Mechanical data

Weight [g]	313
Dimensions [mm]	Ø 55.5 / L = 51.3
Materials	housing: PC/ABS; front lens: polyamide glass fibre reinforced

Accessories

Items supplied

Mounting set:, E2M210

screws: 2 x M6 x 20

washers

Nuts: 2 x M6, self-locking

anti-slide pad

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m
	Connector: 1 x M16; coding: A; Shielded connection cable: true
