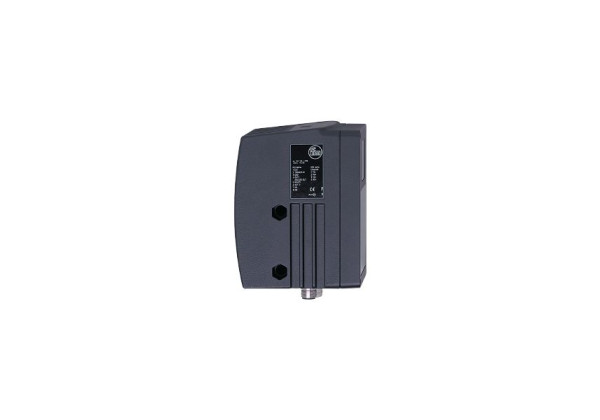

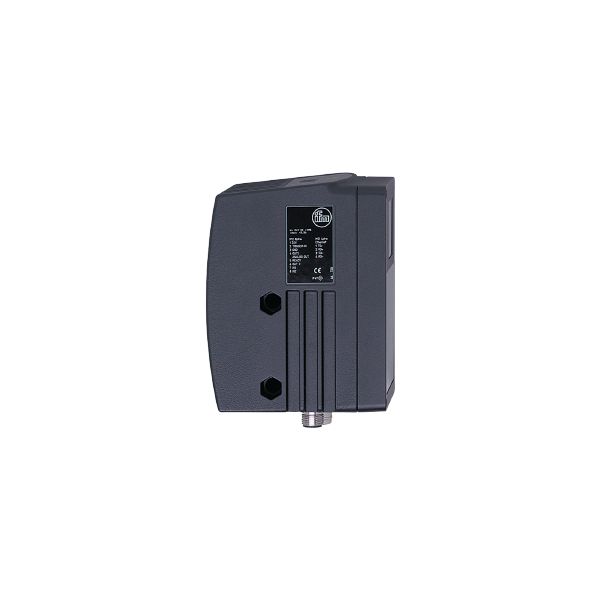

O3D201 - efector250-PMD 3D CAMERA
Brand: IFM Electronic
Code: O3D201
- Visual assessment of distance, level or volume
- Reliable distance measurement due to time-of-flight measurement
- Illumination, measurement and evaluation in one unit
- Output of 3072 distance and grey values per measurement for a detailed evaluation of the application
- Integration by means of intuitive parameter setting software
Product characteristics
| Image resolution 3D [px] | 64 x 48 |
|---|---|
| Angle of aperture 3D [°] | 40 x 30 |
| Max. reading rate [Hz] | 20 |
Electrical data
| Operating voltage tolerance [%] | 10 |
|---|---|
| Operating voltage [V] | 24 DC |
| Current consumption [mA] | peak current pulsed: 3250; typical value: 960 |
| Power consumption [W] | 16 |
| Protection class | III |
| Image sensor | PMD 3D ToF-Chip |
| Internal lighting | yes; (infrared: 850 nm invisible radiation LED class 1) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
|---|
Inputs
| Trigger | 24 V PNP (IEC 61131-2 Typ 1) |
|---|---|
| Number of digital inputs | 2 |
| Input circuit of digital inputs | 24 V PNP; (configurable; IEC 61131-2 Typ 1) |
Outputs
| Total number of outputs | 2 |
|---|---|
| Number of digital outputs | 2; (configurable) |
| Output function | 24 V PNP |
| Max. voltage drop switching output DC [V] | 1 |
| Max. current load per output [mA] | 100 |
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 300 |
| Analogue voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 10000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Image resolution 3D [px] | 64 x 48 |
|---|---|
| Angle of aperture 3D [°] | 40 x 30 |
| Max. reading rate [Hz] | 20 |
Software / programming
| Parameter setting options | via two pushbuttons and 10-segment display or via PC / notebook with operating software |
|---|
Interfaces
| Communication interface | Ethernet |
|---|
| Number of Ethernet interfaces | 1 | ||||
|---|---|---|---|---|---|
| Transmission standard | 10Base-T; 100Base-TX | ||||
| Transmission rate | 10; 100 | ||||
| Factory settings |
|
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 67 |
Tests / approvals
| MTTF [years] | 55 |
|---|
Mechanical data
| Weight [g] | 1176 |
|---|---|
| Dimensions [mm] | 123.5 x 75 x 95 |
| Materials | housing: diecast aluminium; front pane: PMMA; display window: PC |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Ethernet
| Connector: 1 x M12; coding: D |
Electrical connection - Process connection
| Connector: 1 x M12; coding: A |
Other data
Field of view size
| measuring range / distance | Length | Width | center pixel [mm] | minimum object surface |
| 500 | 420 | 290 | 7 x 7 | 13 x 13 |
| 1000 | 840 | 580 | 13 x 13 | 26 x 26 |
| 1500 | 1260 | 870 | 20 x 20 | 39 x 39 |
| 2000 | 1680 | 1160 | 26 x 26 | 53 x 53 |
| 2500 | 2100 | 1450 | 33 x 33 | 66 x 66 |
| 3000 | 2520 | 1740 | 39 x 39 | 79 x 79 |
| 3500 | 2940 | 2030 | 46 x 46 | 92 x 92 |
| 4000 | 3360 | 2320 | 53 x 53 | 105 x 105 |
| 4500 | 3780 | 2610 | 59 x 59 | 118 x 118 |
| 5000 | 4200 | 2900 | 66 x 66 | 131 x 131 |
| 5500 | 4620 | 3190 | 72 x 72 | 144 x 144 |
| 6000 | 5040 | 3480 | 79 x 79 | 158 x 158 |
| For reliable detection the object must be detected by at least 2 x 2 pixels |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O3D201-02 — 23.05.2011 —
