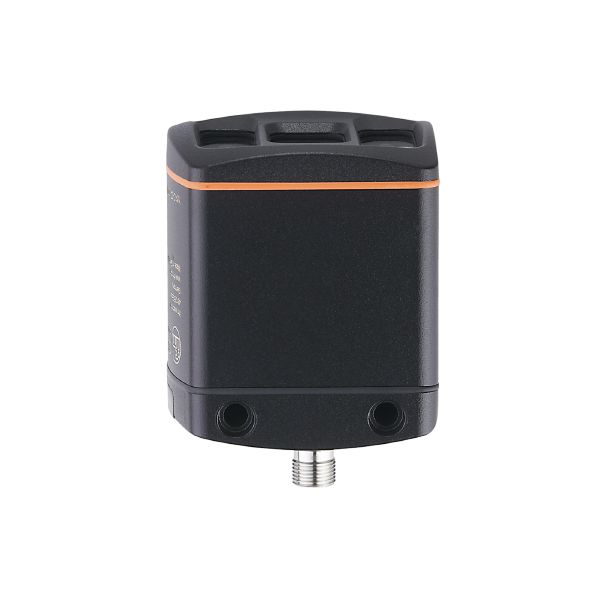

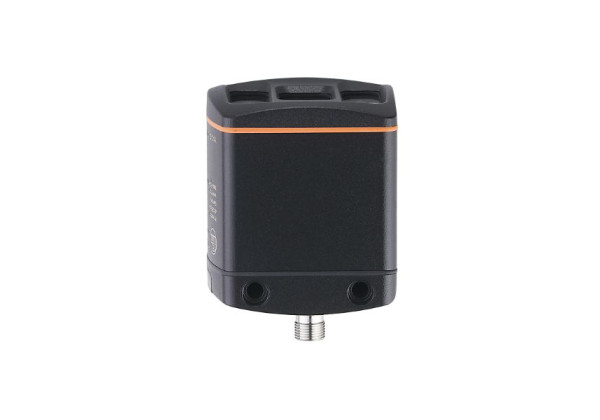

O3D301 - efector250-O3DIRDKG/E1/GM/T/40

Code: O3D301

Visual assessment of distance, level or volume
Reliable distance measurement due to time-of-flight measurement
Illumination, measurement and evaluation in one unit
Output of 93,000 distance and grey values per measurement for a detailed evaluation of the application
Integration by means of intuitive parameter setting software

Product characteristics

Image resolution 3D [px]	352 x 264
Angle of aperture 3D [°]	40 x 30; (nominal value without lens distortion correction)
Max. reading rate [Hz]	25

Application

Application	output of 3D image data

Electrical data

Operating voltage [V]	20.4...28.8 DC; (EN 61131-2)
Current consumption [mA]	< 2400; (peak current pulsed; typical value: 420; maximum value: 1600)
Power consumption [W]	10; (typical value)
Protection class	III
Image sensor	PMD 3D ToF-Chip
Internal lighting	yes; (infrared: 850 nm invisible radiation LED)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Inputs

Trigger	24 V PNP/NPN (IEC 61131-2 Typ 3)

Outputs

Total number of outputs	2
Number of digital outputs	2; (configurable)
Output function	24 V PNP/NPN; (EN 61131-2)
Max. current load per output [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Operating distance [mm]

300...10000

Note on operating distance

object size: 200 x 200 mm

reflectivity: 18 %

Image resolution 3D [px]

352 x 264

Angle of aperture 3D [°]

40 x 30; (nominal value without lens distortion correction)

Max. reading rate [Hz]

Measuring/setting range

Measuring range [m]	< 30

Software / programming

Parameter setting options	via PC with ifm Vision Assistant or XML-RPC

Interfaces

Communication interface	Ethernet

Ethernet

Number of Ethernet interfaces

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10; 100

Protocol

TCP/IP

Factory settings

IP address: 192.168.0.69

subnet mask: 255.255.255.0

gateway IP address: 192.168.0.201

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67
Max. immunity to extraneous light [klx]	8; (with reduced measuring accuracy and repeatability: < 100)

Tests / approvals

EMC

DIN EN 61000-6-4	radiation of interference / industrial environments
DIN EN 61000-6-2	immunity / industrial environments

Shock resistance

DIN EN 60068-2-27	50 g / (11 ms) not repetitive
DIN EN 60068-2-27	40 g / (6 ms) repetitive

Vibration resistance

DIN EN 60068-2-6	2 g / (10...150 Hz)
DIN EN 60068-2-64	2.3 g RMS / (10...500 Hz)

Photobiological safety

exempt group; (DIN EN 62471)

Electrical protection

DIN EN 61010-2-201

electrical supply only via PELV circuits

MTTF [years]

45.02

Mechanical data

Weight [g]	785
Dimensions [mm]	72 x 67.1 x 82.6
Materials	housing: diecast aluminium; front pane: Gorilla Glass; function display: PA

Displays / operating elements

Display

function	2 x LED, green Ethernet operation
switching status	2 x LED, yellow OUT 1 OUT 2

Accessories

Items supplied

Protective covers

Remarks

Pack quantity	1 pcs.

Electrical connection - Ethernet

	Connector: 1 x M12; coding: D

Electrical connection - Process connection

	Connector: 1 x M12; coding: A

Other data

Field of view size

	without lens distortion correction		with lens distortion correction
measuring range / distance [m]	Length [m]	Width [m]	Length [m]	Width [m]
0.50	0.27	0.36	0.26	0.35
1.00	0.53	0.73	0.52	0.69
2.00	1.07	1.46	1.04	1.39
3.00	1.60	2.19	1.56	2.08
4.00	2.13	2.92	2.08	2.78
5.00	2.67	3.65	2.61	3.47

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O3D301-01 — 25.06.2015 —
