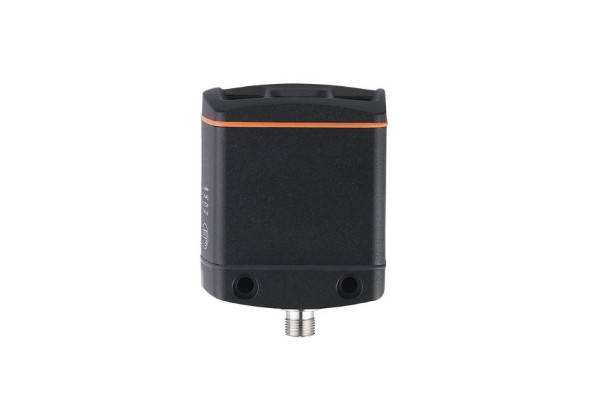

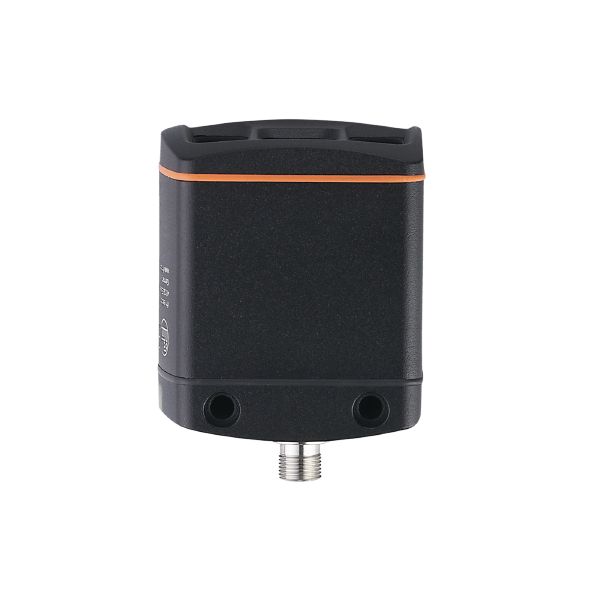

O3D302 - efector250-O3DIRDKG/E1/GM/S/60
Brand: IFM Electronic
Code: O3D302
- Reliable volume determination for storage and conveyor technology
- Non-contact dimensioning of rectangular objects such as cardboard packages or parcels
- Reliable measurement of height, width and length to calculate strap length and volume
- Reliable detection of size, orientation and position of the objects for automated storage space planning
- Switching outputs and Ethernet process data interface
Product characteristics
| Image resolution 3D [px] | 176 x 132 |
|---|---|
| Angle of aperture 3D [°] | 60 x 45; (nominal value without lens distortion correction) |
| Max. reading rate [Hz] | 25 |
Application
| Application | dimensioning of the object; completeness monitoring; Level monitoring; distance monitoring; volume monitoring |
|---|
Electrical data
| Operating voltage [V] | 20.4...28.8 DC; (EN 61131-2) |
|---|---|
| Current consumption [mA] | < 2400; (peak current pulsed; typical value: 420; maximum value: 1600) |
| Power consumption [W] | 10; (typical value) |
| Protection class | III |
| Image sensor | PMD 3D ToF-Chip |
| Internal lighting | yes; (infrared: 850 nm invisible radiation LED) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 3; Number of analogue outputs: 1 |
|---|
Inputs
| Trigger | 24 V PNP/NPN (IEC 61131-2 Typ 3) |
|---|---|
| Number of digital inputs | 2 |
| Input circuit of digital inputs | 24 V PNP/NPN; (configurable; IEC 61131-2 Typ 3) |
Outputs
| Total number of outputs | 3 |
|---|---|
| Number of digital outputs | 3; (configurable) |
| Output function | 24 V PNP/NPN; (EN 61131-2) |
| Max. voltage drop switching output DC [V] | 1 |
| Max. current load per output [mA] | 100 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Analogue voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 10000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Operating distance [mm] | 300...8000 | ||
|---|---|---|---|
| Note on operating distance |
| ||
| Image resolution 3D [px] | 176 x 132 | ||
| Angle of aperture 3D [°] | 60 x 45; (nominal value without lens distortion correction) | ||
| Max. reading rate [Hz] | 25 |
Measuring/setting range
| Measuring range [m] | < 30 |
|---|
Software / programming
| Parameter setting options | via PC with ifm Vision Assistant |
|---|
Interfaces
| Communication interface | Ethernet |
|---|
| Number of Ethernet interfaces | 1 | |||
|---|---|---|---|---|
| Transmission standard | 10Base-T; 100Base-TX | |||
| Transmission rate | 10; 100 | |||
| Protocol | TCP/IP; PROFINET IO; EtherNet/IP | |||
| Factory settings |
|
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 65; IP 67 |
| Max. immunity to extraneous light [klx] | 8; (with reduced measuring accuracy and repeatability: < 100) |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| Photobiological safety | exempt group; (DIN EN 62471) | ||||
| Electrical protection |
| ||||
| MTTF [years] | 43.08 |
Mechanical data
| Weight [g] | 772.35 |
|---|---|
| Dimensions [mm] | 72 x 65 x 82.6 |
| Materials | housing: diecast aluminium; front pane: Gorilla Glass; function display: PA |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Ethernet
| Connector: 1 x M12; coding: D |
Electrical connection - Process connection
| Connector: 1 x M12; coding: A |
Other data
field of view size with lens distortion correction
| measuring range / distance [m] | Length [m] | Width [m] | ||
| 0.50 | 0.37 | 0.50 | ||
| 1.00 | 0.75 | 1.00 | ||
| 2.00 | 1.50 | 2.00 | ||
| 3.00 | 2.25 | 3.00 | ||
| 4.00 | 3.00 | 4.00 | ||
| 5.00 | 3.75 | 5.00 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O3D302-04 — 23.05.2016 —
