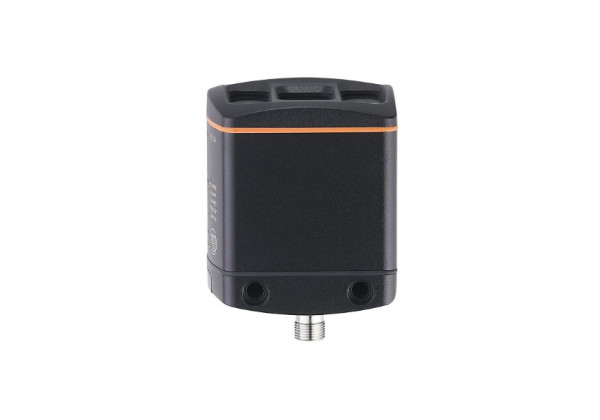

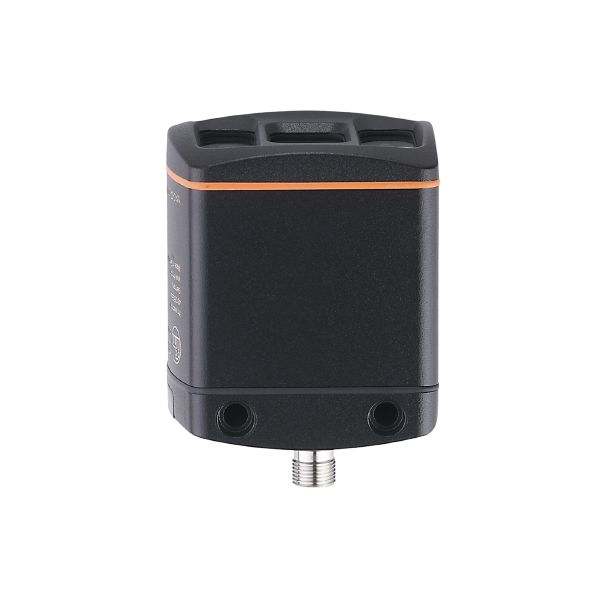

O3DP01 3D camera O3DIRDKG/E1/GM/T/40/PDS

Code: O3DP01

Product characteristics

Image resolution 3D [px]	352 x 264
Angle of aperture 3D [°]	40 x 30

Application

Application	detection of pallets

Electrical data

Operating voltage [V]	20.4...28.8 DC; (EN 61131-2)
Current consumption [mA]	420
Max. current consumption [mA]	1600
Power consumption [W]	10
Protection class	III
Image sensor	PMD 3D ToF-Chip
Internal lighting	yes; (infrared: 850 nm invisible radiation LED)
Switch-on peak current [mA]	2400

Detection zone

Operating distance [mm]	1000...2000
Image resolution 3D [px]	352 x 264
Angle of aperture 3D [°]	40 x 30

Software / programming

Parameter setting options	via PC with ifm Vision Assistant or XML-RPC

Interfaces

Communication interface	Ethernet

Ethernet

Number of Ethernet interfaces

Transmission standard

10Base-T; 100Base-TX

Transmission rate

10; 100

Protocol

TCP/IP

Factory settings

IP address: 192.168.0.69

subnet mask: 255.255.255.0

gateway IP address: 192.168.0.201

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67
Max. immunity to extraneous light [klx]	8; (with reduced measuring accuracy and repeatability: < 100)

Tests / approvals

EMC

DIN EN 61000-6-4	radiation of interference / industrial environments
DIN EN 61000-6-2	immunity / industrial environments

Shock resistance

DIN EN 60068-2-27	50 g / (11 ms) not repetitive
DIN EN 60068-2-27	40 g / (6 ms) repetitive

Vibration resistance

DIN EN 60068-2-6	2 g / (10...150 Hz)
DIN EN 60068-2-64	2.3 g RMS / (10...500 Hz)

Photobiological safety

exempt group; (DIN EN 62471)

Electrical protection

DIN EN 61010-2-201

electrical supply only via PELV circuits

Mechanical data

Weight [g]	774.55
Dimensions [mm]	72 x 67.1 x 82.6
Materials	housing: diecast aluminium; front pane: Gorilla Glass; function display: PA

Displays / operating elements

Display

function	2 x LED, green Ethernet operation
switching status	2 x LED, yellow OUT 1 OUT 2

Accessories

Items supplied

spring washers

Remarks

Pack quantity	1 pcs.

Electrical connection - Ethernet

	Connector: 1 x M12; coding: D

Electrical connection - Process connection

	Connector: 1 x M12; coding: A

Other data

Field of view size

measuring range / distance [m]	Length [m]	Width [m]
0.50	0.26	0.35
1.00	0.52	0.69
2.00	1.04	1.39
3.00	1.56	2.08
4.00	2.08	2.78
