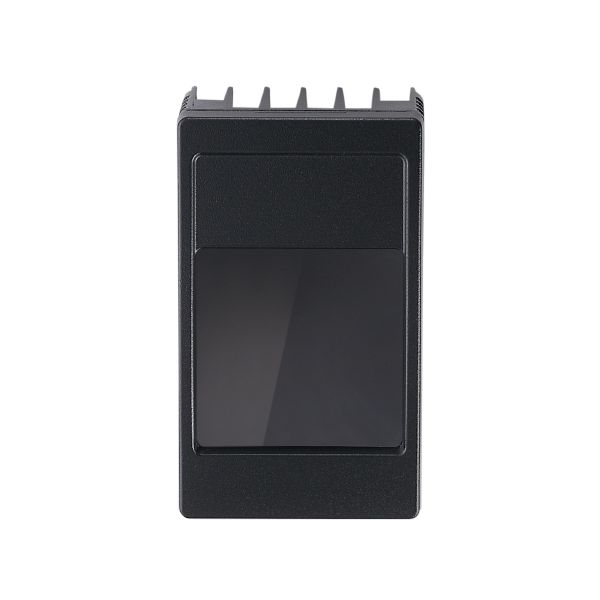

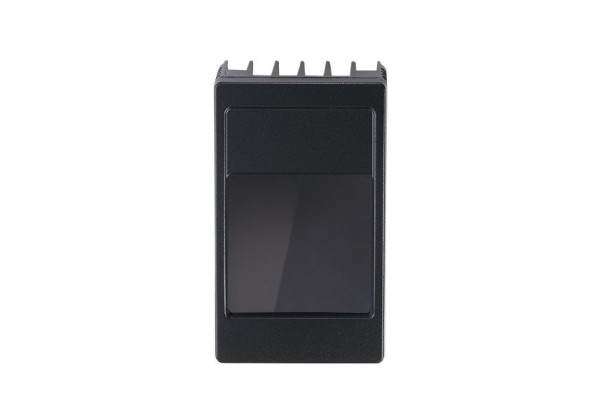

O3M970 IR illumination unit O3MIOOKG/GM/97
Brand: IFM Electronic
Code: O3M970
- For sensors for 3D detection of scenes and objects
- Suited for use in mobile machines
- Compact and robust housing
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Product characteristics
| Type of light | infrared light |
|---|---|
| Angle of aperture [°] | 97 x 44 |
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
Electrical data
| Operating voltage [V] | 9...32 DC |
|---|---|
| Current consumption [mA] | < 5000 |
| Power consumption [W] | 45 |
| Protection class | III |
| Type of light | infrared light |
| Wave length [nm] | 850 |
Detection zone
| Angle of aperture [°] | 97 x 44 |
|---|---|
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
Software / programming
| Parameter setting options | via PC and O3M271 / O3M171 with ifm Vision Assistant |
|---|
Interfaces
| Communication interface | MCI |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 | |
|---|---|---|
| Note on ambient temperature |
| |
| Storage temperature [°C] | -40...105 | |
| Protection | IP 67; IP 69K; (with mounted connectors or protective caps) |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| Photobiological safety | risk group 1; (DIN EN 62471) | ||||
| Electrical protection |
| ||||
| MTTF [years] | 78 |
Mechanical data
| Weight [g] | 1416.9 |
|---|---|
| Dimensions [mm] | 143 x 85 x 83.5 |
| Materials | housing: diecast aluminium; disc: polycarbonate |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O3M970-00 — 23.11.2022 —
