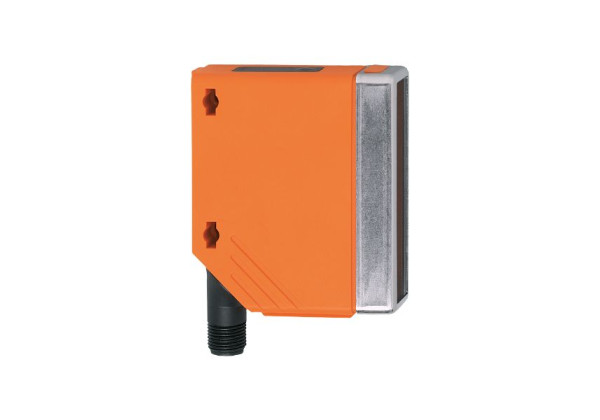

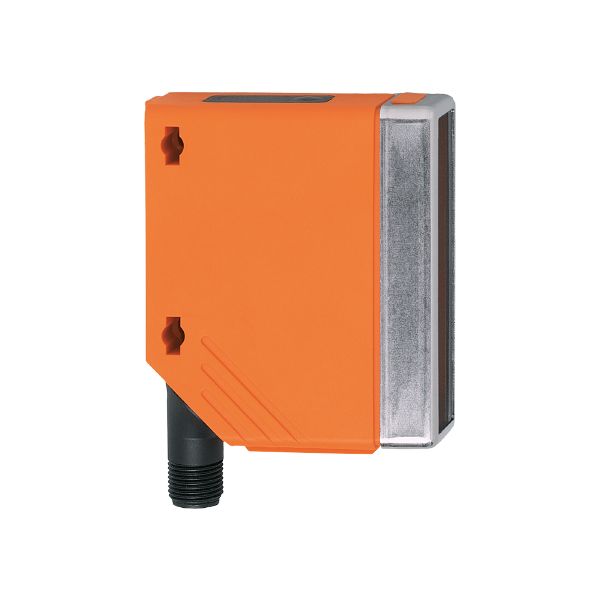

O4E201 Through-beam sensor receiver O4E-HPKG/US100

Code: O4E201

Very long range
Robust housing for use in harsh industrial environments
Clearly visible indication of the switching status
Excellent price/performance ratio
With connector that can be rotated by 90°

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...36 DC; ("supply class 2" to cULus)
Current consumption [mA]	12
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	0...50
Range adjustable	no

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

1073

Mechanical data

Weight [g]

117.5

Housing

rectangular

Dimensions [mm]

74.4 x 27 x 63.8

Materials

housing: PA; bezel: stainless steel; LED window: PC

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status

2 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph

x:	Abstand [mm]
y:	Funktionsreservefaktor
