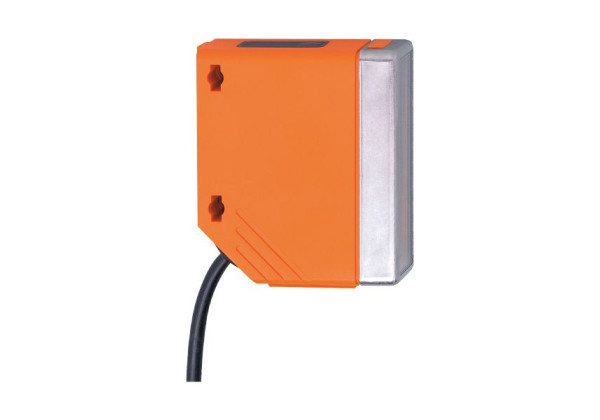

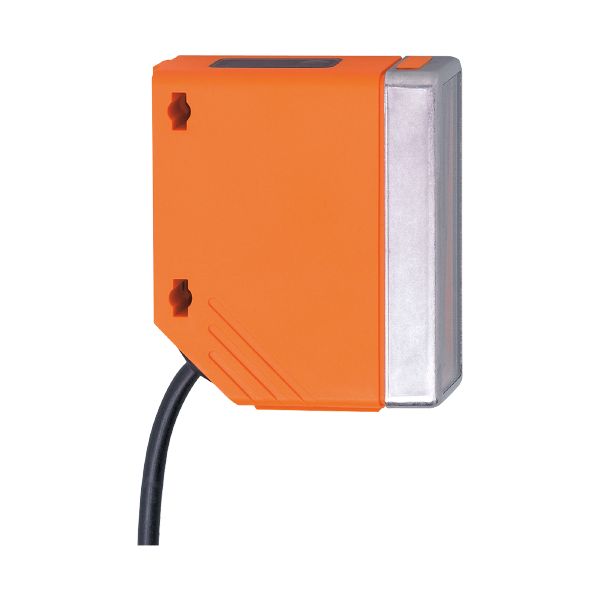

O4E501 - efector200-O4E-FPKG/2M

Code: O4E501

Very long range
Sensitivity adjustable via teach buttons
Programmable light-on/dark-on mode
Robust housing for use in harsh industrial environments
With connector that can be rotated by 270°

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	12
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	0...80
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

785

Mechanical data

Weight [g]

206.5

Housing

rectangular

Dimensions [mm]

74.4 x 27 x 63.8

Materials

housing: PA; bezel: stainless steel; operator interface: TPE

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status

1 x LED, yellow

Teach function

yes

Electronic lock

yes

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²

Diagrams and graphs

excess gain graph

x:	Abstand [mm]
y:	Funktionsreservefaktor
