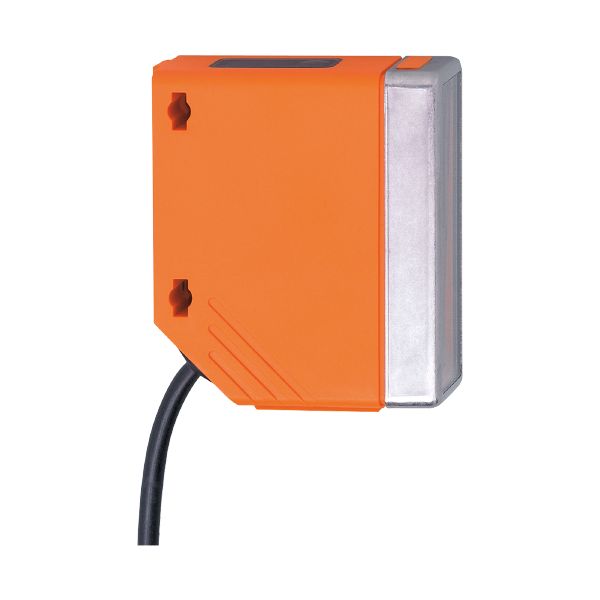

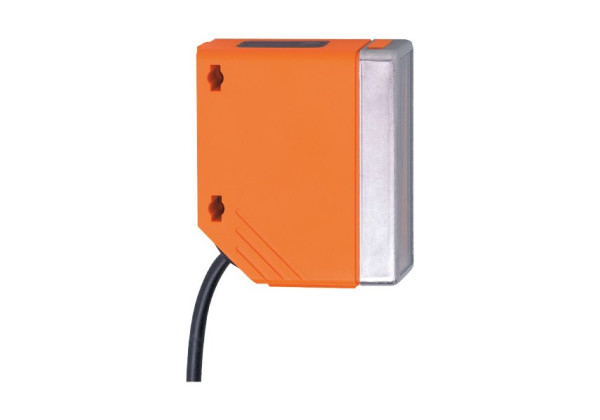

O4S501 - efector200-O4S-OOKG/2M
Brand: IFM Electronic
Code: O4S501
- Very long range
- Robust housing for use in harsh industrial environments
- Clearly visible indication of the readiness for operation
- Excellent price/performance ratio
- With connection cable
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
Outputs
| Overload protection | yes |
|---|
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | 0...80 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 2400 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 616 |
Mechanical data
| Weight [g] | 205 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 74.4 x 27 x 63.8 | |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPE | |
| Lens material |
| |
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 2 m, PUR; 3 x 0.34 mm² |
|---|
Diagrams and graphs
| excess gain graph |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O4S501-00 — 13.04.2023 —
