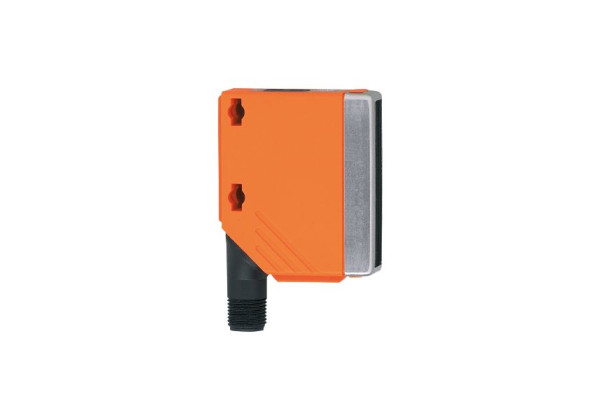

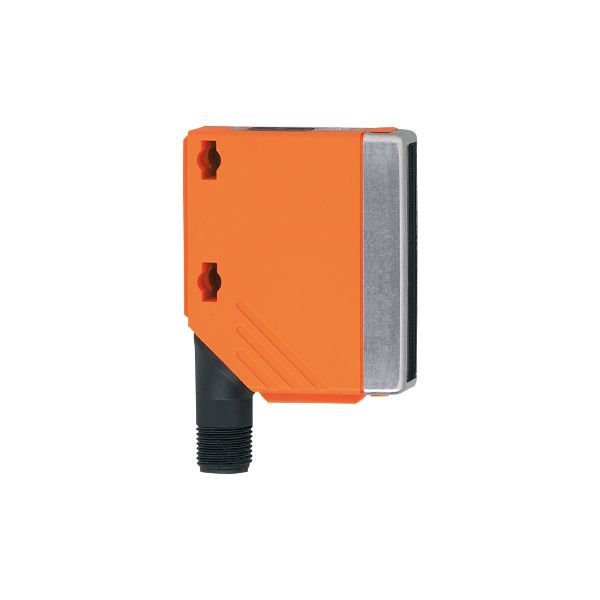

O5C500 - efector200-O5C-MAKG/US100

Code: O5C500

Recognition, sorting and checking of objects based on their colour
Easy adjustment of the device function via teach
Reliable detection of colour shades
High switching frequency for fast processes
Extensive range of fixing components

Product characteristics

Type of light	red light; green light; blue light
Housing	rectangular

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	50; ((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	red light; green light; blue light
Wave length [nm]	625; 525; 465

Outputs

Electrical design

PNP/NPN; (automatic load detection PNP/NPN)

Output function

light-on/dark-on mode; (programmable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

200

Switching frequency DC [Hz]

2000

Notes on switching frequency [Hz]

for tolerance step 5

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Range [mm]	15...19
Max. light spot width [mm]	2.5
Max. light spot height [mm]	6

Response times

Response time [s]	< 0.3

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

491

Mechanical data

Weight [g]

82.5

Housing

rectangular

Dimensions [mm]

56 x 18.2 x 46.8

Materials

housing: PA; bezel: stainless steel; operator interface: TPU / PC

Lens material

front pane:PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status	1 x LED, yellow
tolerance step	1 x LED, green

Teach function

yes

Electronic lock

yes

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O5C500-00 — 13.04.2023 —
